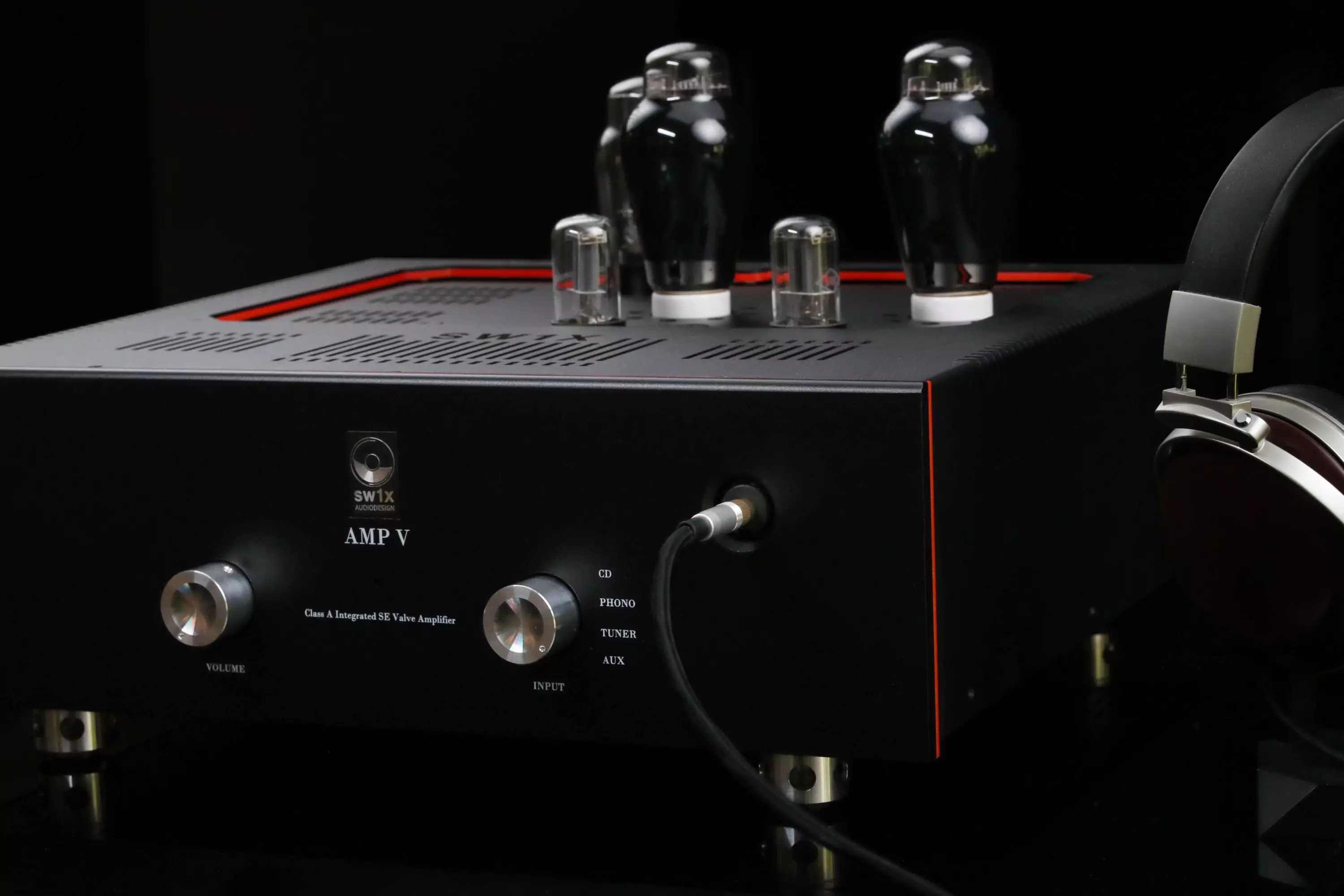

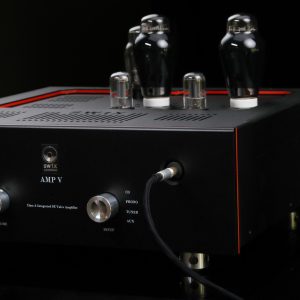

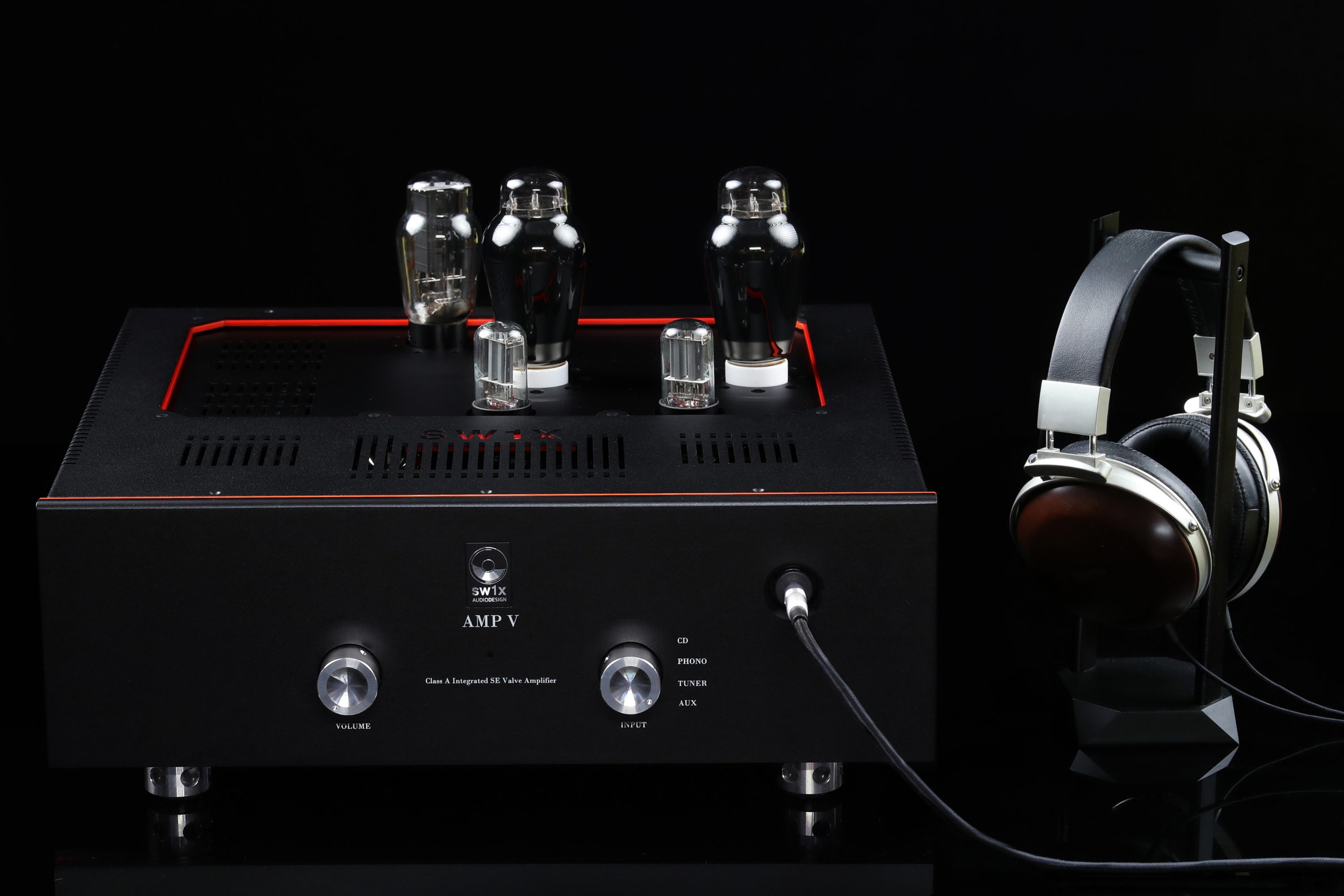

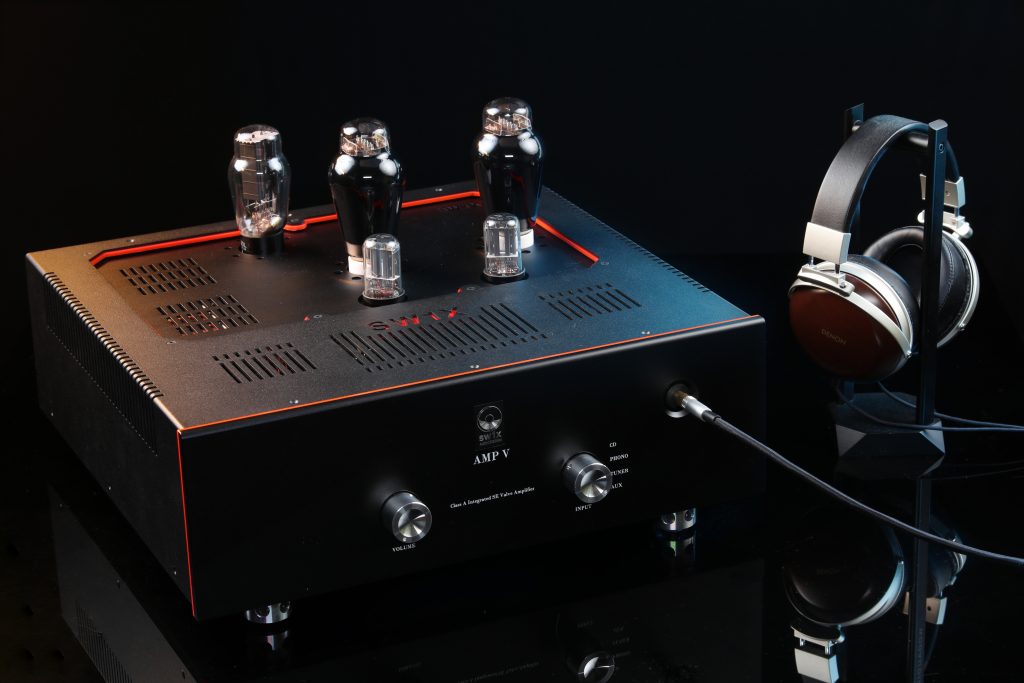

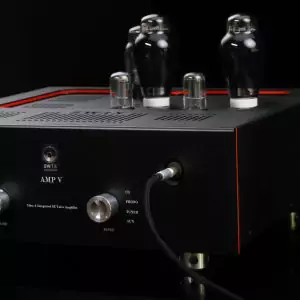

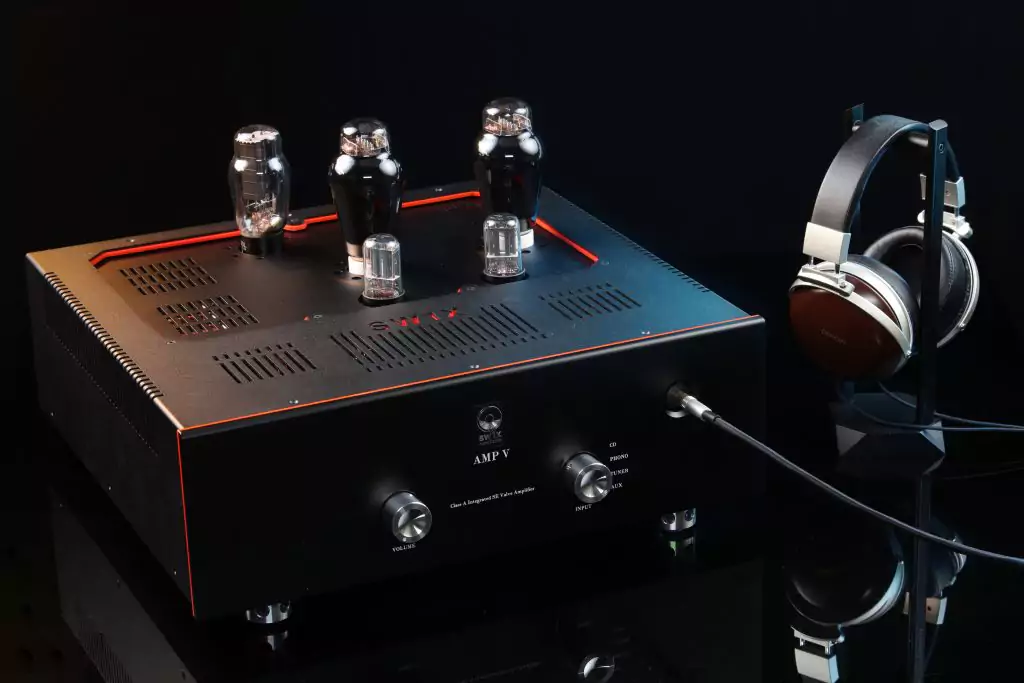

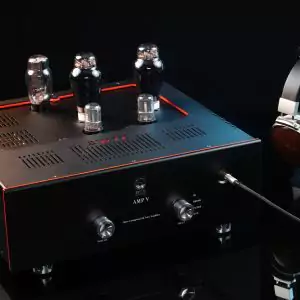

SW1X AMP V “Titan” HP Integrated Headphone Amplifier

300B DHT Integrated Headphone Amplifier

AMP V HP is a 3 gain stage Power Amplifier coupled with a High Quality Pre-amplifier using our in house designed and in house made stepped attenuator volume control.

It is extremely musical, powerful and the most refined sounding Integrated Amplifier.

The Directly Heated 300B Triodes at the output need no introduction. They are driven by equally powerful 6N6P/5687/E182CC driver tubes or by popular 6SN7 input/driver tubes to produce a seamlessly linear and balanced sound.

With the additional headphones output, headphone enthusiasts can also experience the same rich, analogue sound, making it a versatile choice for both speaker and headphone listening.

SW1X AMP V “Titan” HP Integrated Headphone Amplifier

300B DHT Integrated Headphone Amplifier

AMP V HP is a 3 gain stage Power Amplifier coupled with a High Quality Pre-amplifier using our in house designed and in house made stepped attenuator volume control.

It is extremely musical, powerful and the most refined sounding Integrated Amplifier.

With the additional headphones output, headphone enthusiasts can also experience the same rich, analogue sound, making it a versatile choice for both speaker and headphone listening.

AMP V Titan Integrated Amplifier HiFi Amplifier

SW1X Audio Design™ AMP V HP Features:

Performance Level 4/5
Specially Selected and Harmonically Matched Component & Material Quality
Single Ended, absolutely Zero NFB, Class A, Directly Heated Triode Valve Power Amplifier
2 x 6N6P/5687/E182CC or 6SN7 Triode driver/input Stage Valves driving the 2 x 300B DHT Valves
3 Amplification Gain Stage Design

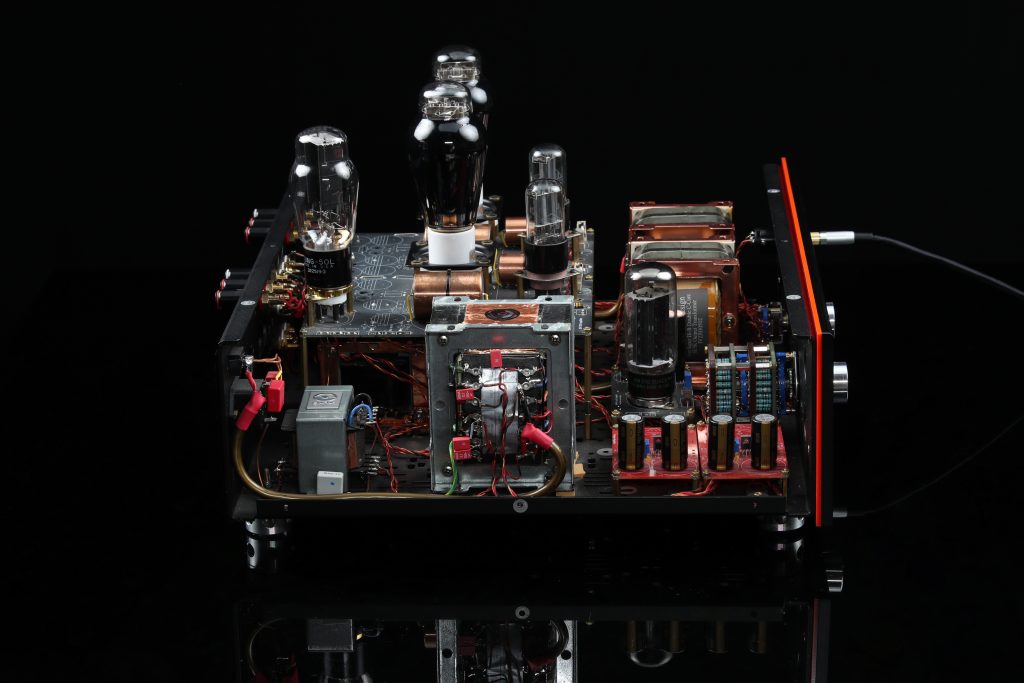

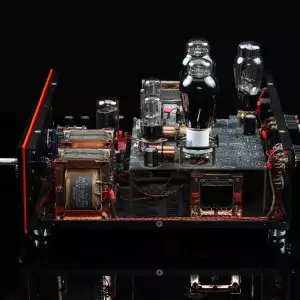

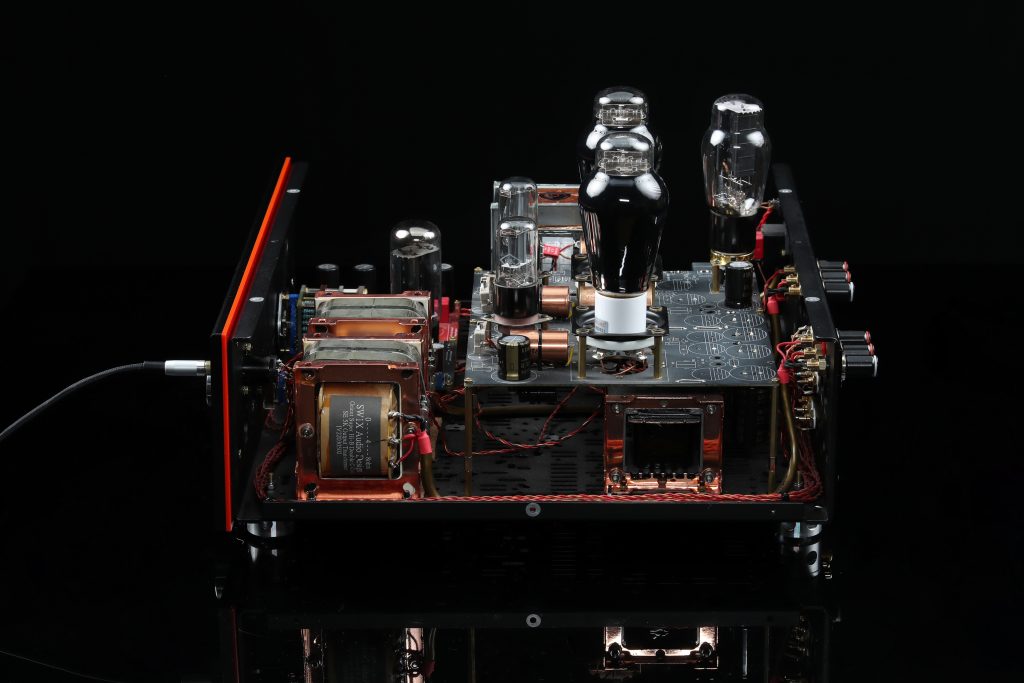

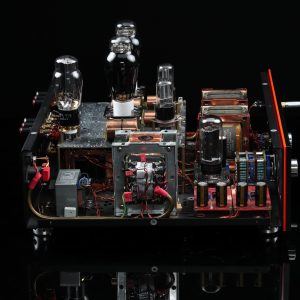

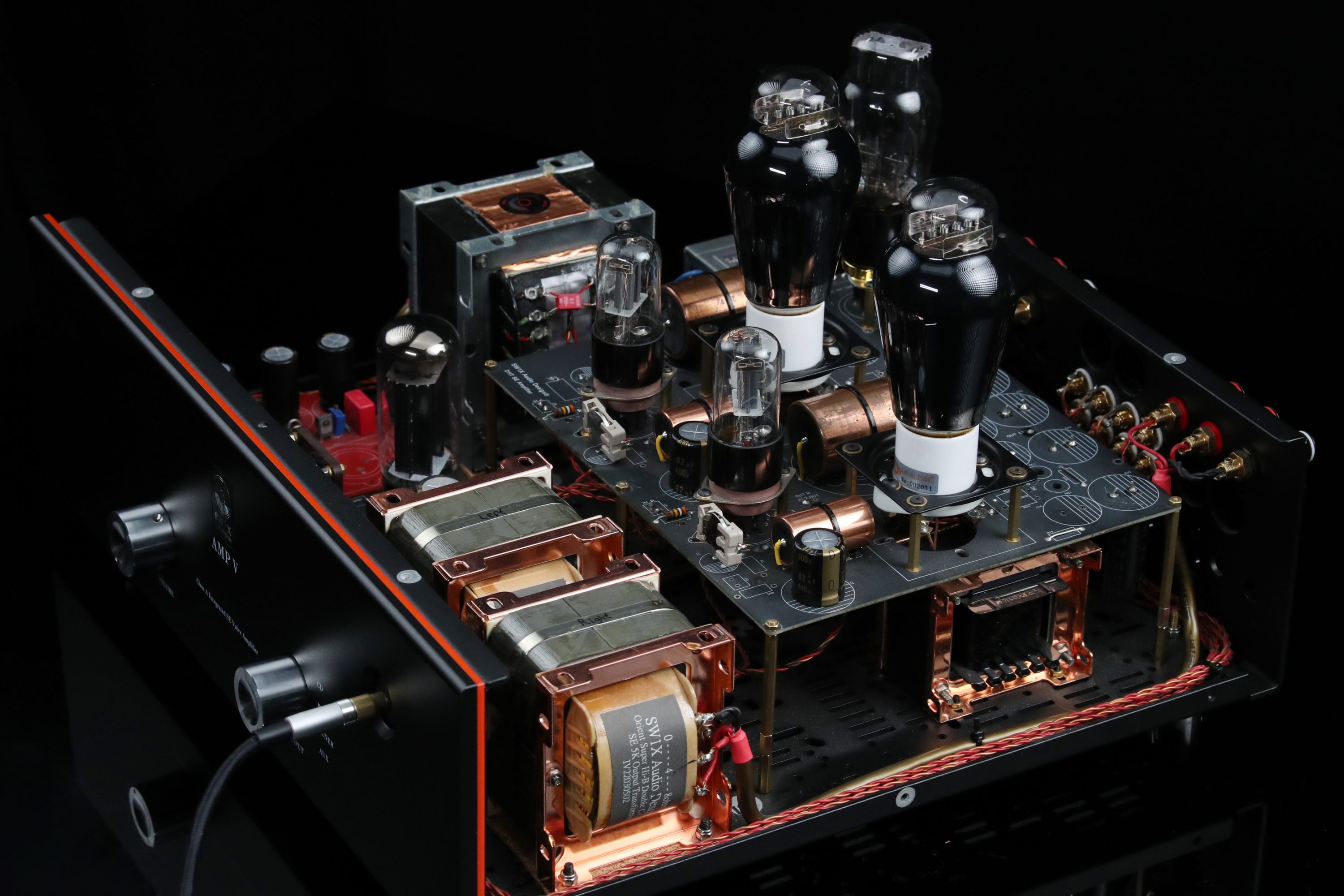

Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors
SW1X Audio Design™ Custom Designed Copper wound Super HiB DC Core (50 Watt) Signal Output Transformers
Quasi Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
SW1X Custom Design 24 Step Discrete Attentuator Volume Control
6.5 mm Headphone Output
Orient grain M6 EI core mains Transformers & Chokes
Valve rectified Fixed Bias Power Supply

“The Titan imparted class-leading differentiation of dynamics and tonalities between instruments from the four woofers and the field-coil main driver, and the consistency with which the integrated amplifier did so with different recordings highlighted an engineering feat so thorough in forging a signal path of the purest as to be fanatical.”

Constantine Soo – Dagogo.com

Tube Compliment

2 x 6SN7
2 x 300B
1 x 5U4GB
1 x 5Y3

Tube Compliment

2 x 6SN7
2 x 300B
1 x 5U4GB
1 x 5Y3

Versions

AMP V Titan HP is available in 4 Versions with either Satin Silver or Matte Black front Panels with a following output transformer (OPTs) specifications:

Standard : SW1X Audio Design™ all Copper wound, orient grain M6 EI Core OPTs

Special : SW1X Audio Design™ all Copper wound Super HiB DC Core OPTs

Classic : SW1X Audio Design™ Copper/Silver Windings, Super HiB DC Core OPTs

Signature : SW1X Audio Design™ Silver/Silver Windings, Super HiB DC Core OPTs
