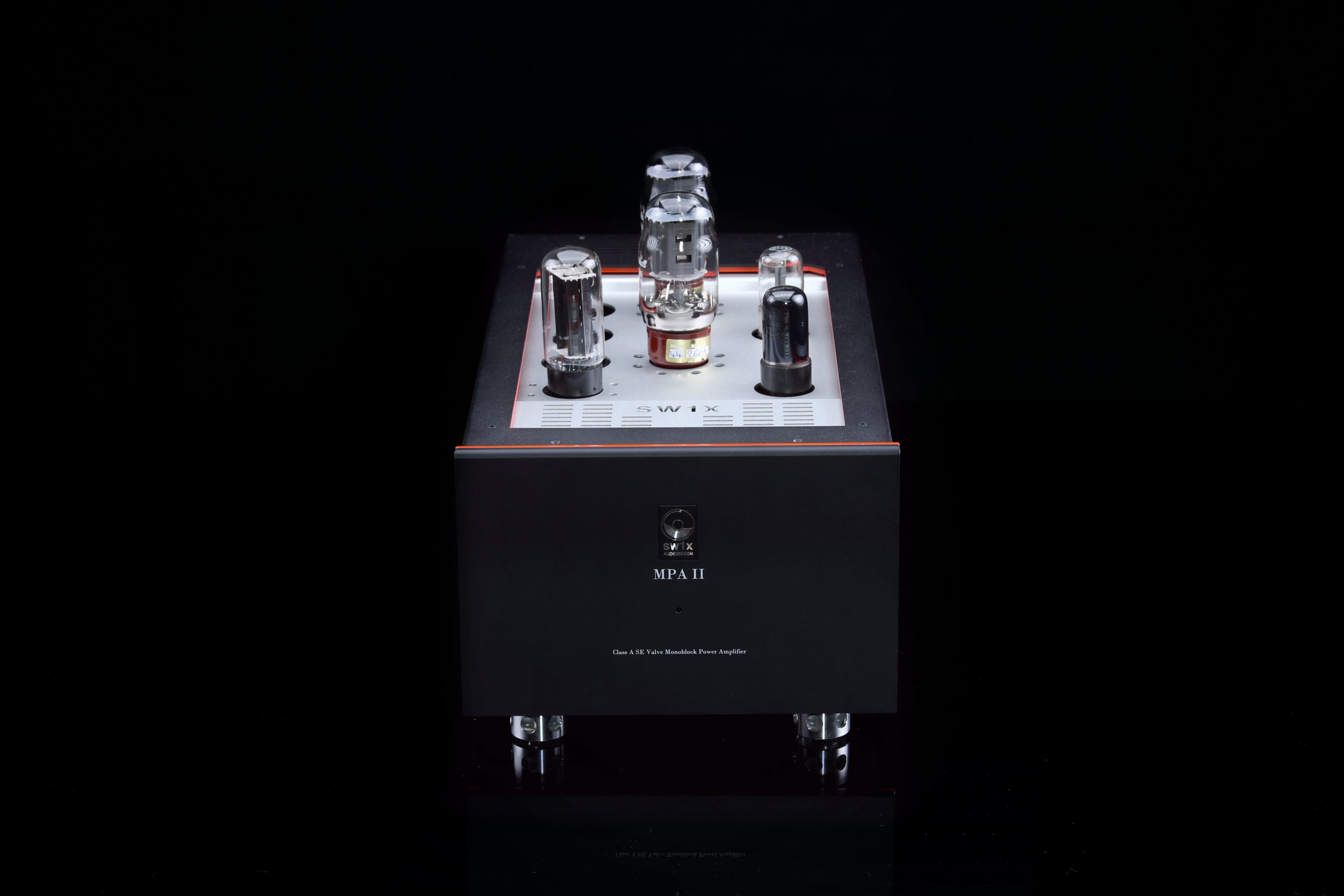

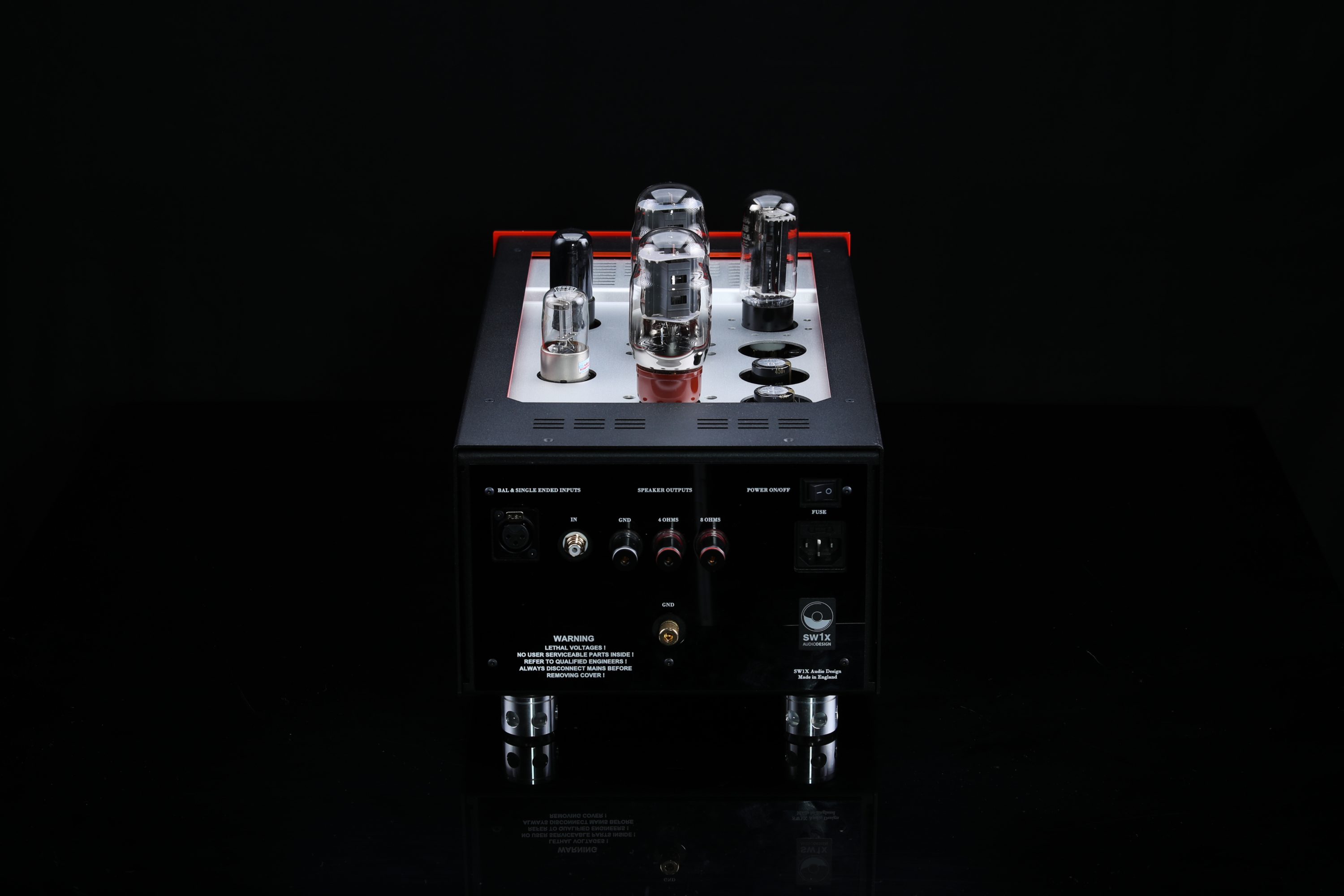

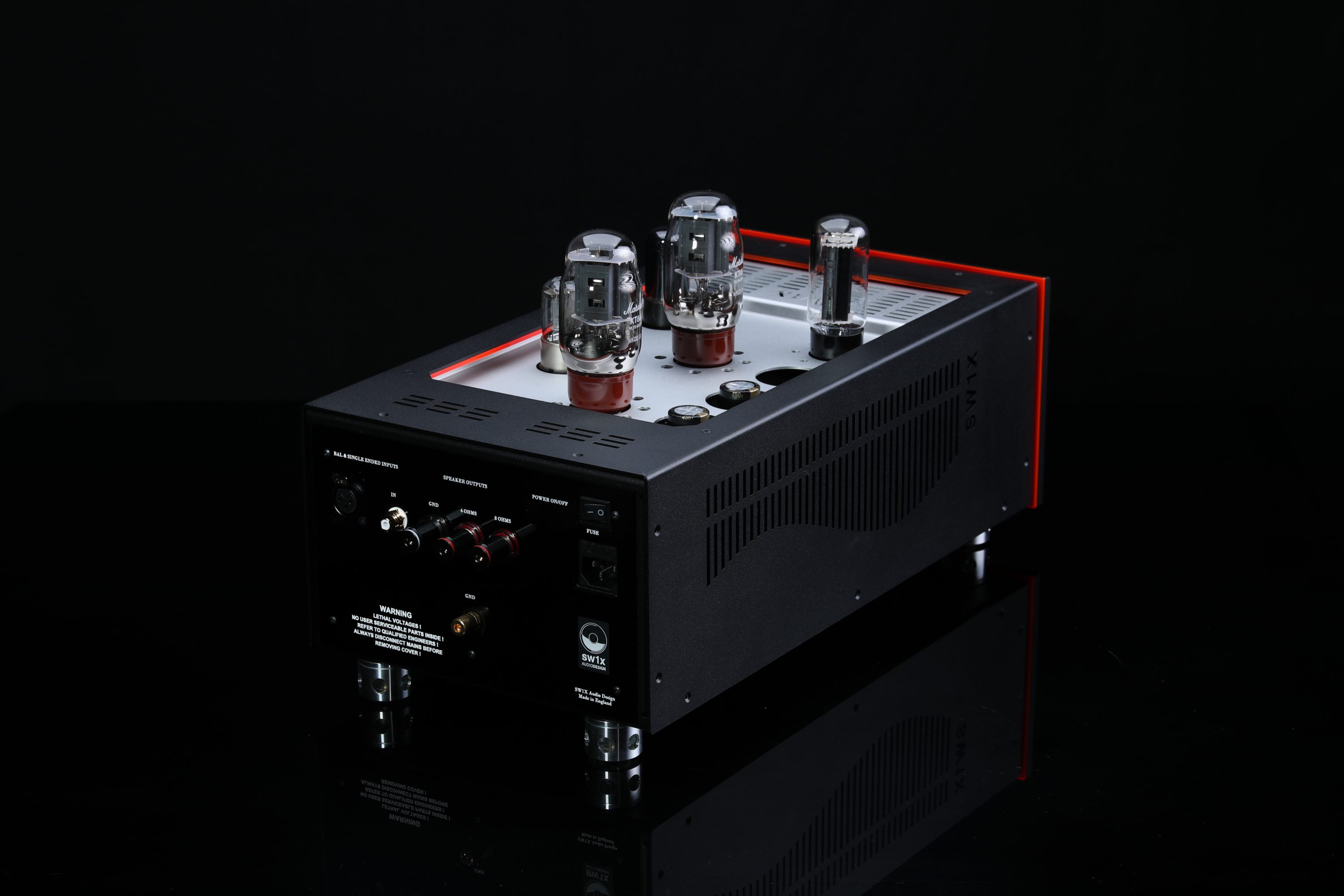

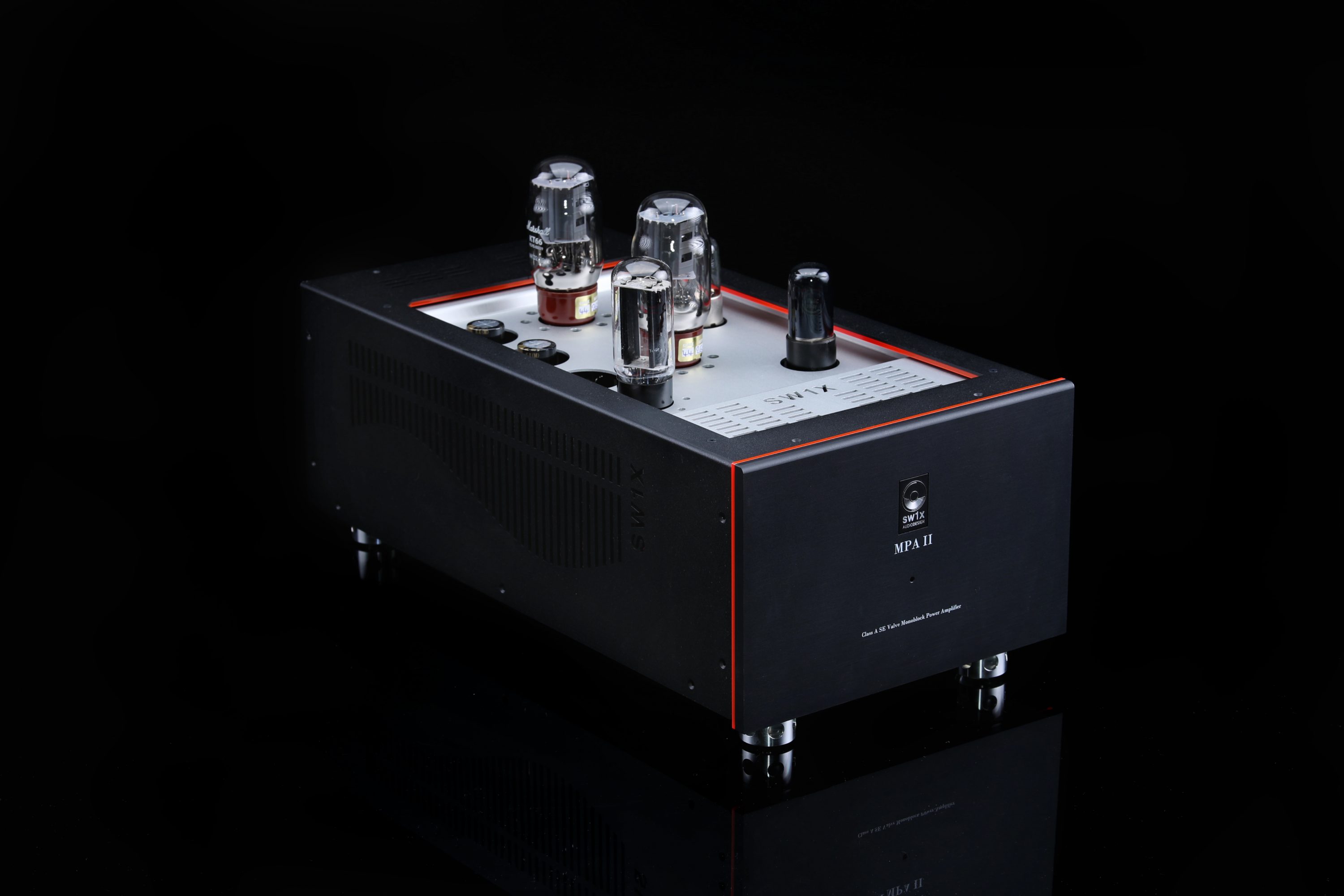

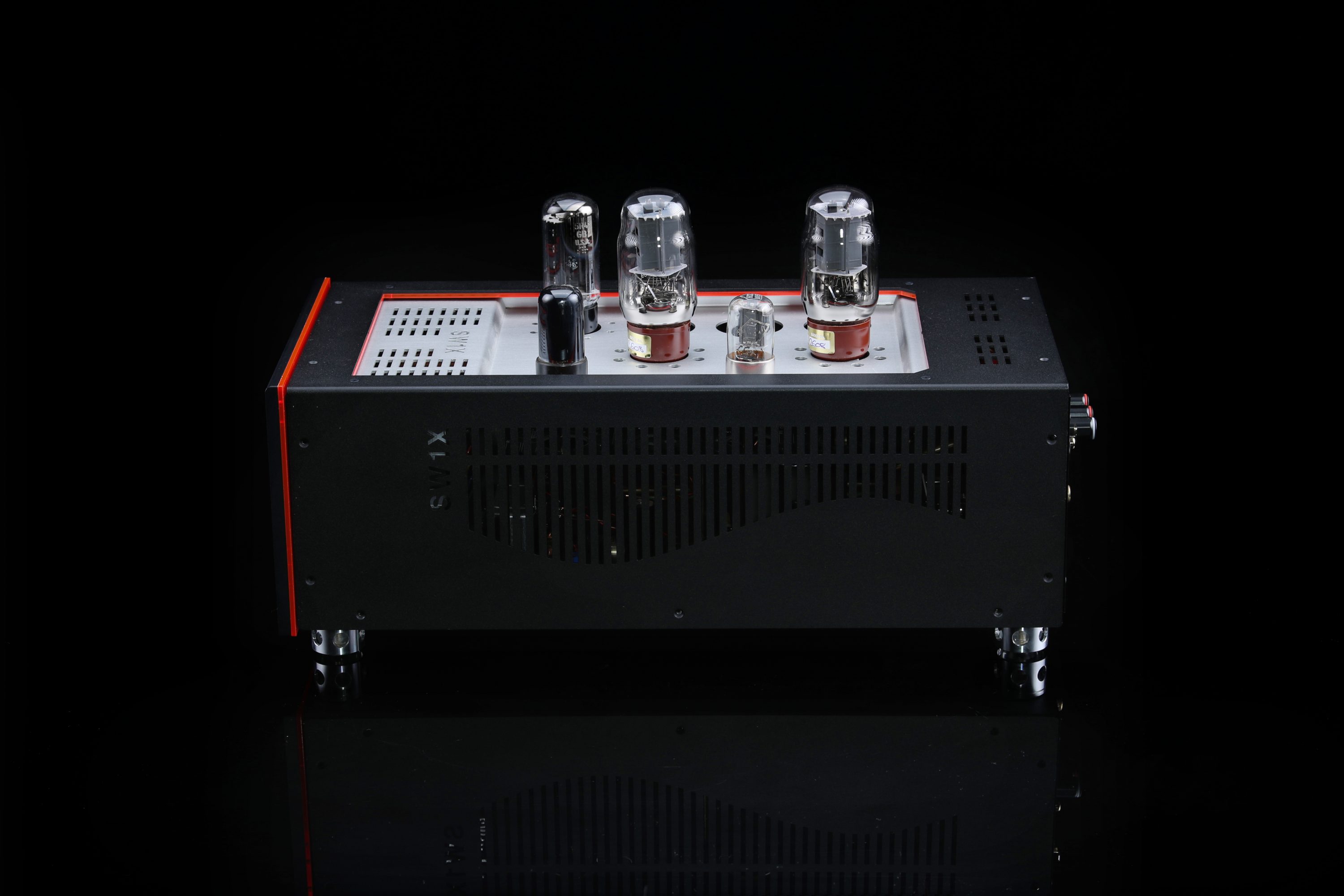

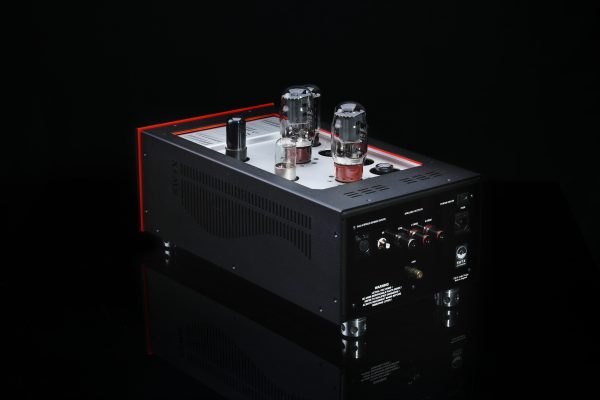

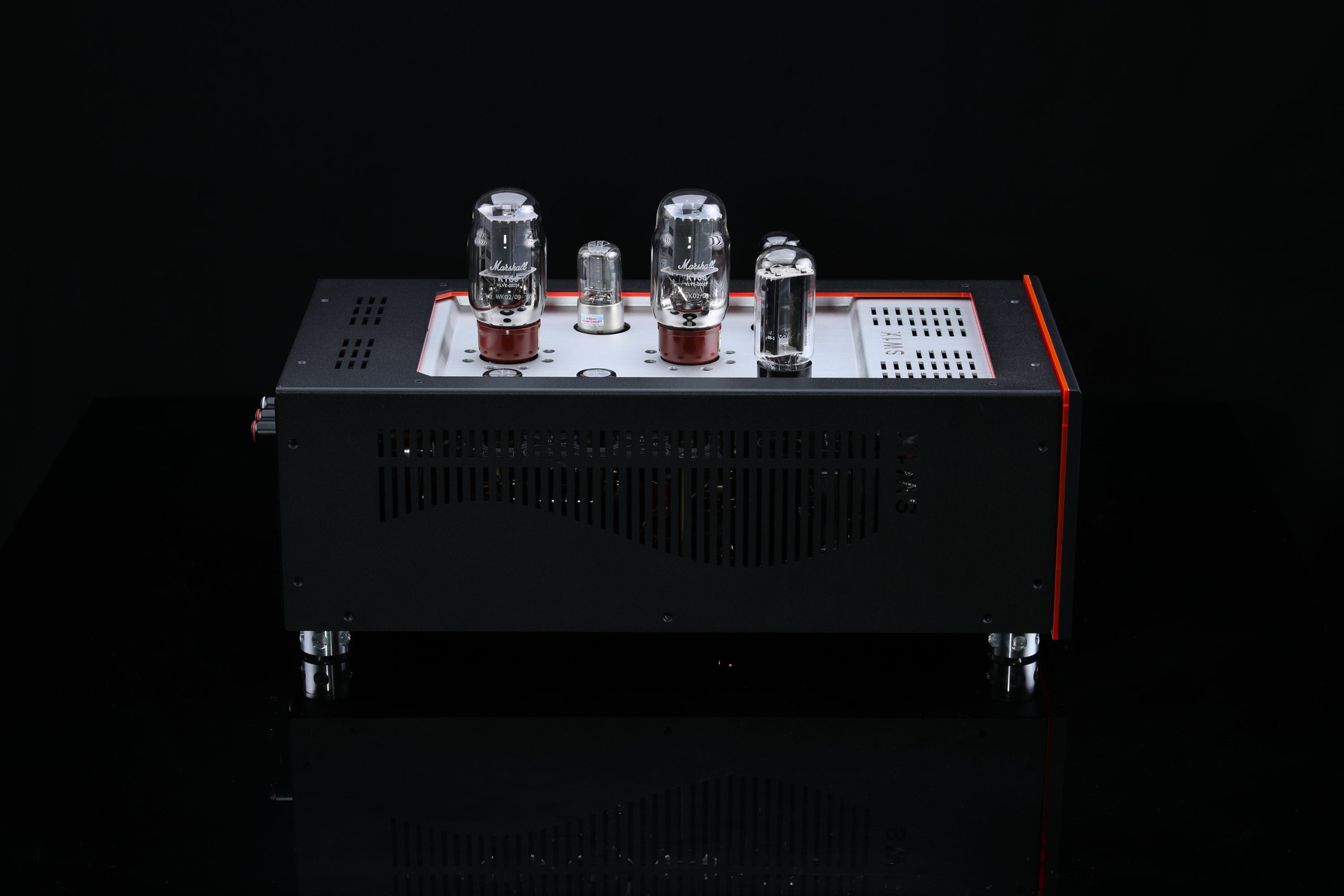

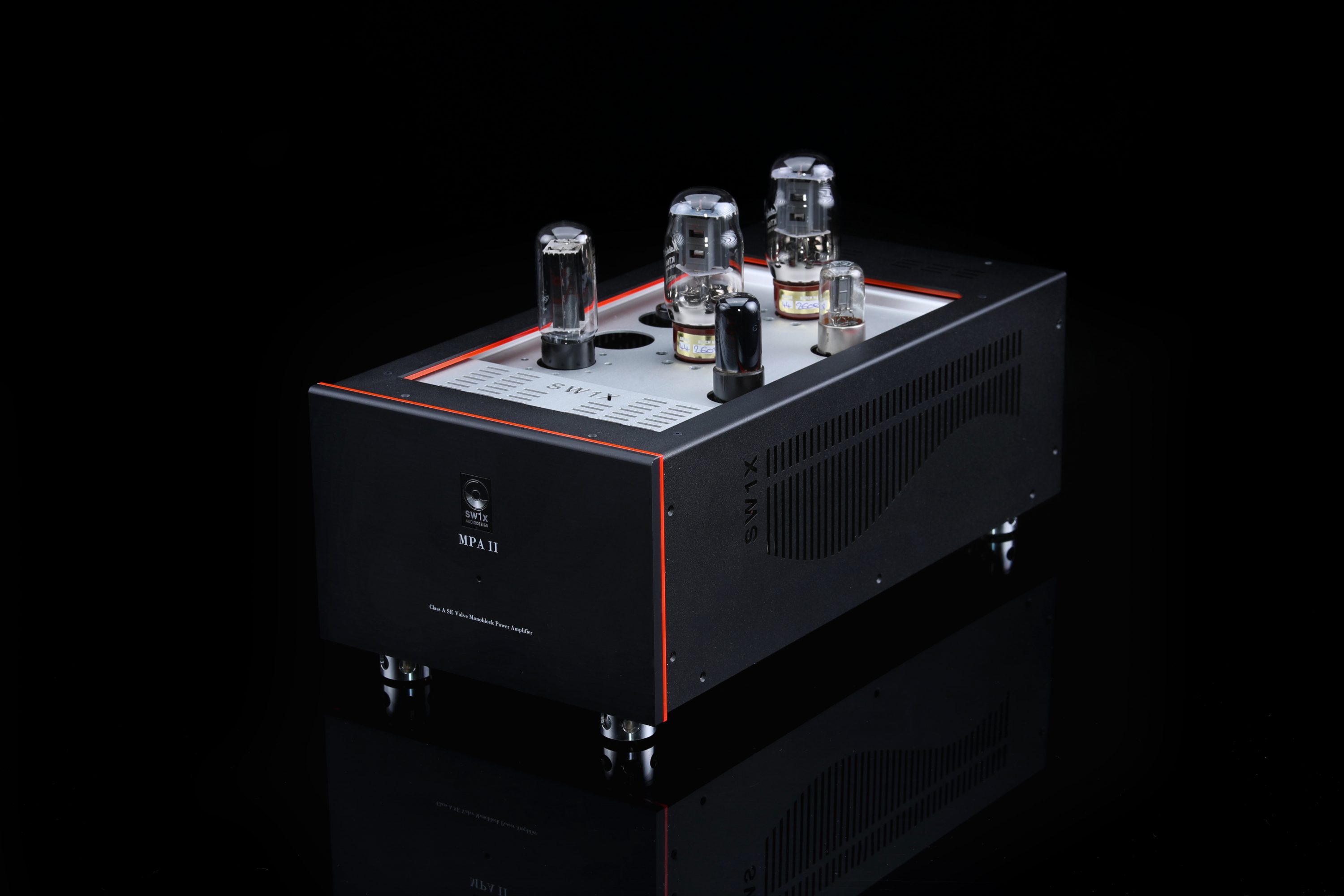

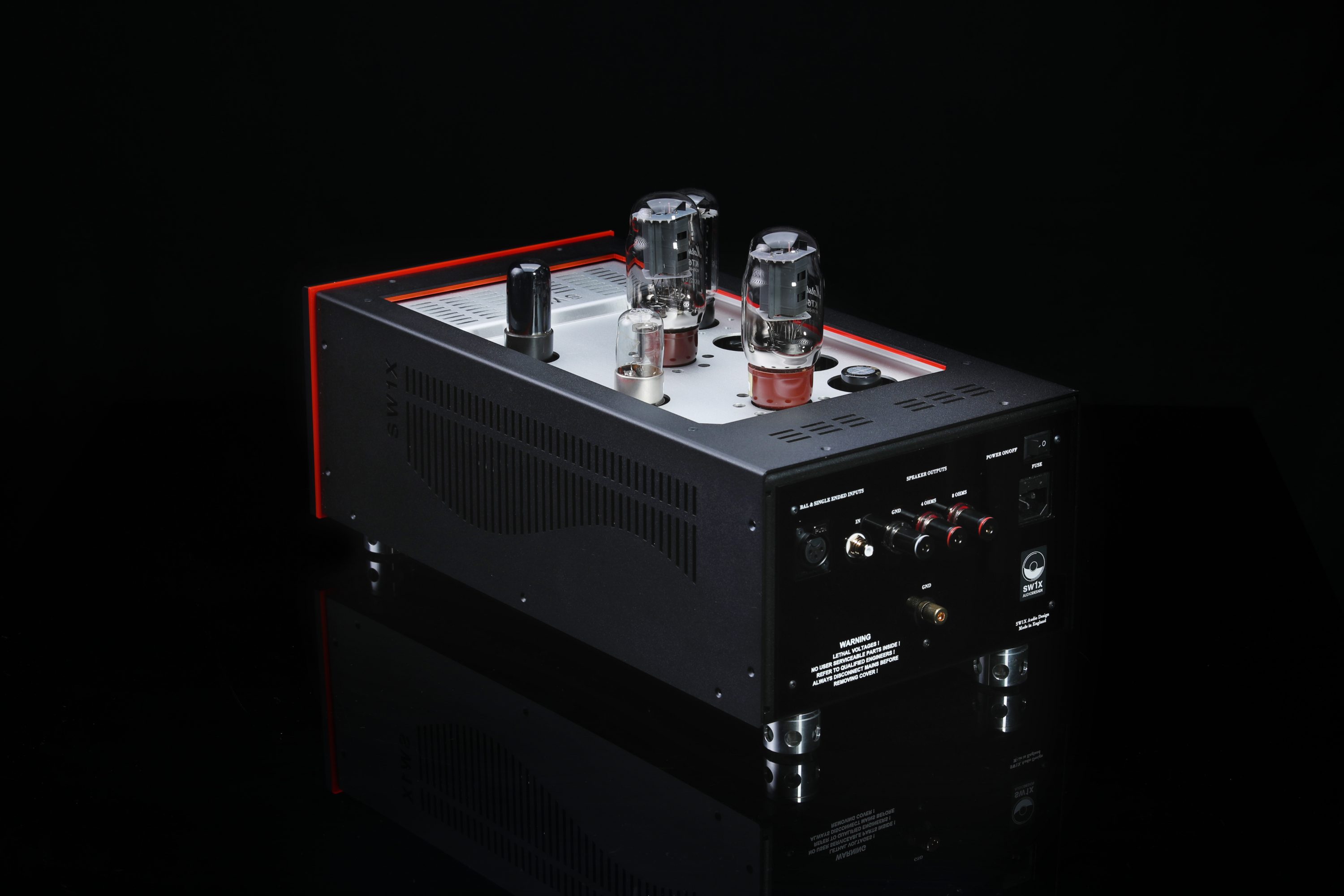

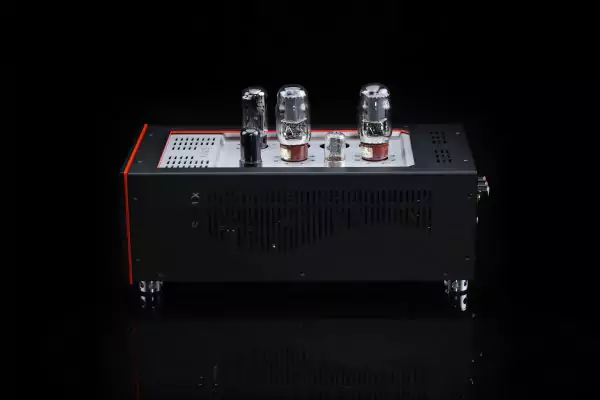

SW1X Audio Design™ MPA II Kronos
Performance Level 1/2/3
KT66 Valve Push Pull Mono Power Amplifier
SW1X MPA II ‘Kronos’ is a Pure Class A, Zero Negative Feedback, Fully Valve Rectified, Push Pull, 3 Gain Stage, Mono Power Amplifier.
The KT66 Triodes in combination with 6V6 triode connected driver tubes offer the presentation of the famous KT66 electric guitar valves with a grungy & full bodied sound.
The output valves are de-coupled by Output Transformers and driven by 6V6 power valves to enhance the sound of the KT66 valves with power of the 6V6.
Combined with the finest Materials & Components, MPA II is refined & musical sounding, especially when combined with high sensitivity speakers
(90dB/W/1m sensitivty as a minimum recommended).
SW1X Audio Design™ MPA II Kronos Mono Power Amplifier Features:
- Specially Selected and Harmonically Matched Component & Material Quality
- Push Pull, Zero NFB, Class A, Valve Power Amplifier
- 6V6 Valve Driver/6J5 input Stage driving the triode connected pair of KT66 Valves
- 3 Gain Stage Design
- Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
- Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors
- SW1X Audio Design™ Custom Designed Copper wound Super HiB DC Core (50 Watt) Signal Output Transformers
- Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
- Orient grain M6 EI core mains Transformers & Chokes
- Valve rectified Fixed Bias Power Supply
Tube Compliment (Pair): 2 x 6J5, 2 x 6V6, 4 x KT66, 2 x 5U4G
MPA II Kronos is avaiable in 2 Versions with following output transformer (OPTs) specifications:
- Standard : SW1X Audio Design™ all Copper wound, orient grain M6 EI Core OPTs
- Special : SW1X Audio Design™ all Copper wound Super HiB DC Core OPTs
Note: Due to SW1X Audio Design’s ongoing research and development process, specifications are subject to change without notice
Specifications
Push Pull, Class A, Zero NFB, Output Power (W): 12, which sound at least like 160 Watts and the dynamic delivery feel like 1000 W
when paired with with High Sensitivity Speakers (min 90dB/W/1m is recommended)
Input Sensitivity (V): 1
Input Impedance (Ohms): 47K or 100K
Output Impedance (Ohms): 4 & 8
Max Power Consumption (W): 200
Output Noise, Unweighted (mVrms): < 0.5
Dimensions (without tubes and feet): Height (mm) 200 x Width (mm) 250 x Depth (mm) 440
Weight (kg): 40 (pair)
