SW1X XCalibur Horn Loudspeakers

XCalibur Horn Loudspeakers

Resurrecting the soul of music

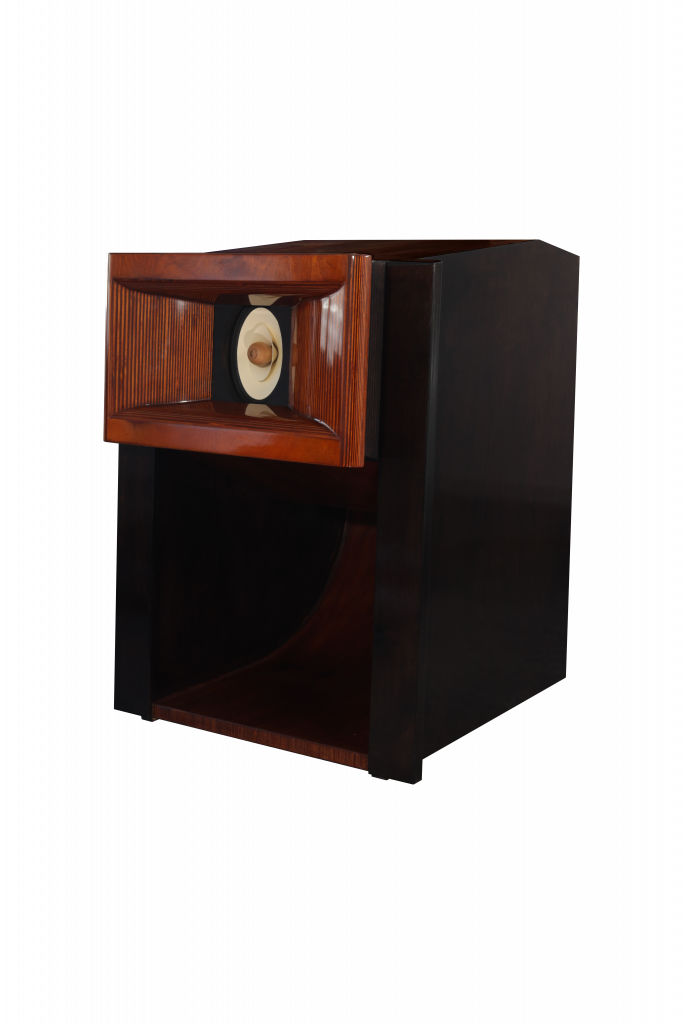

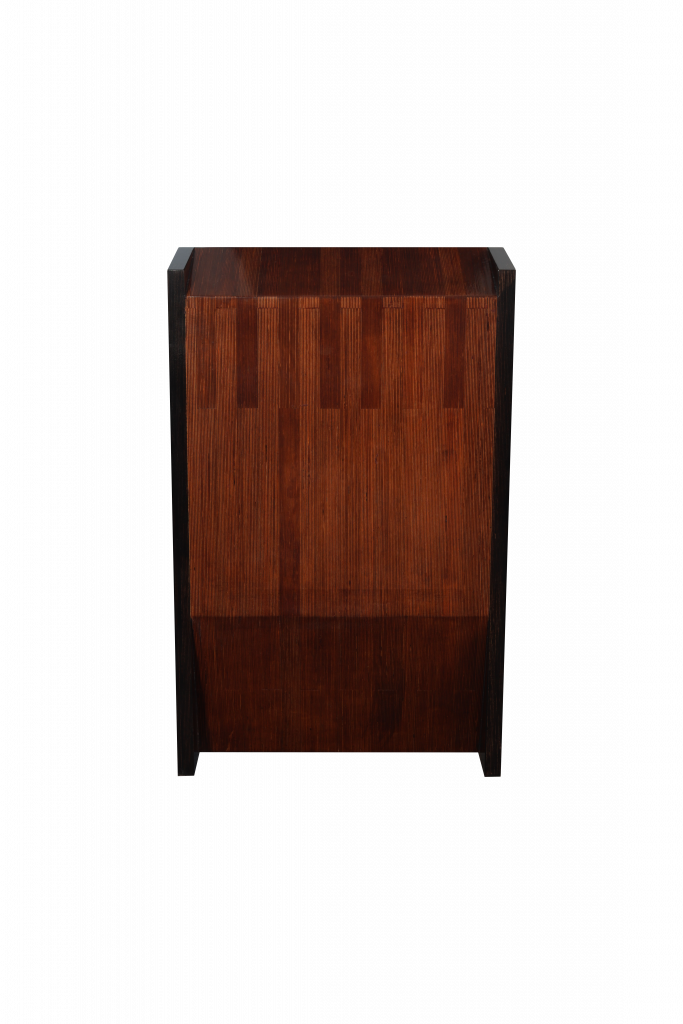

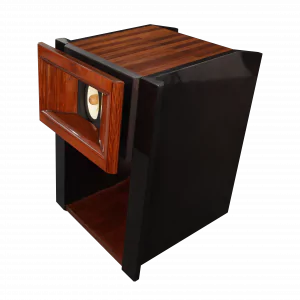

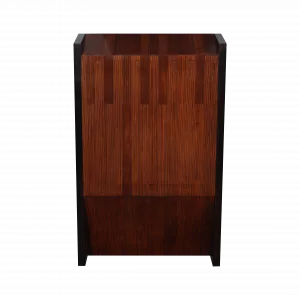

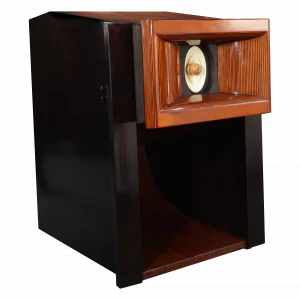

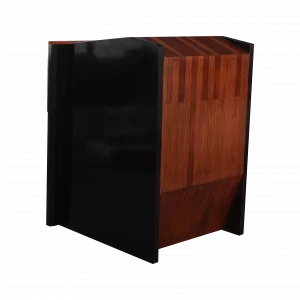

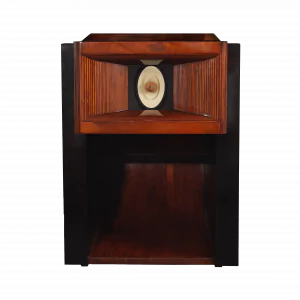

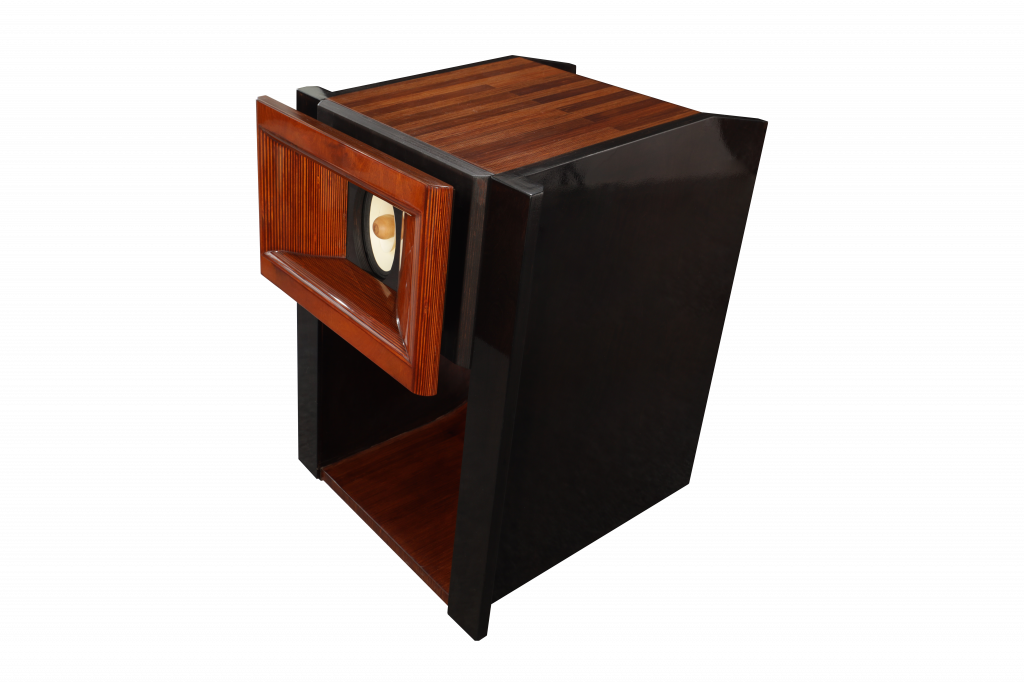

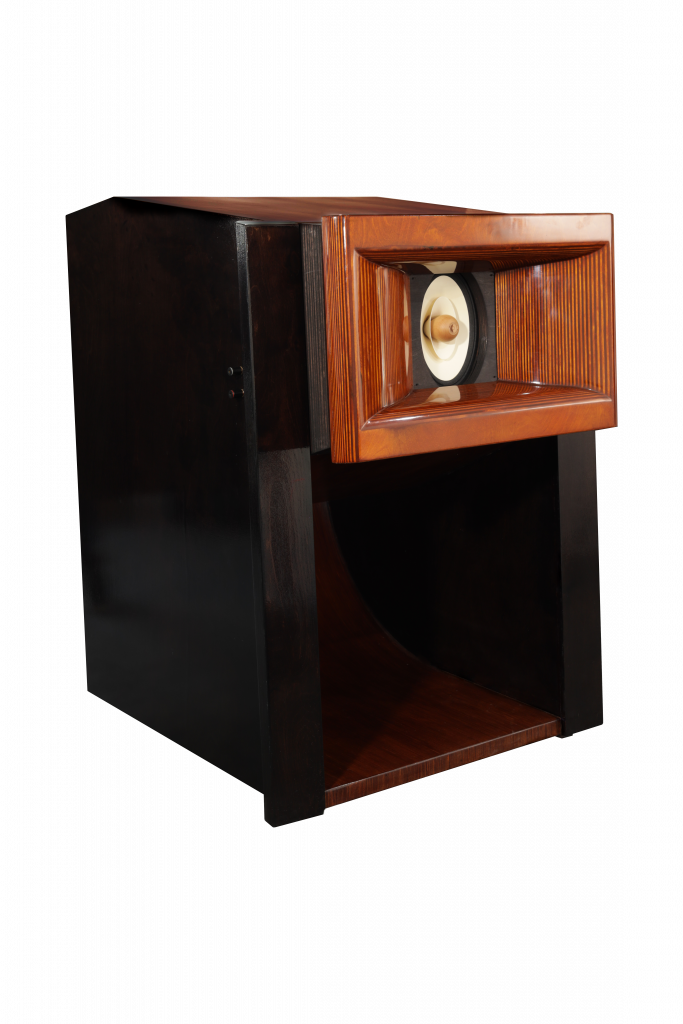

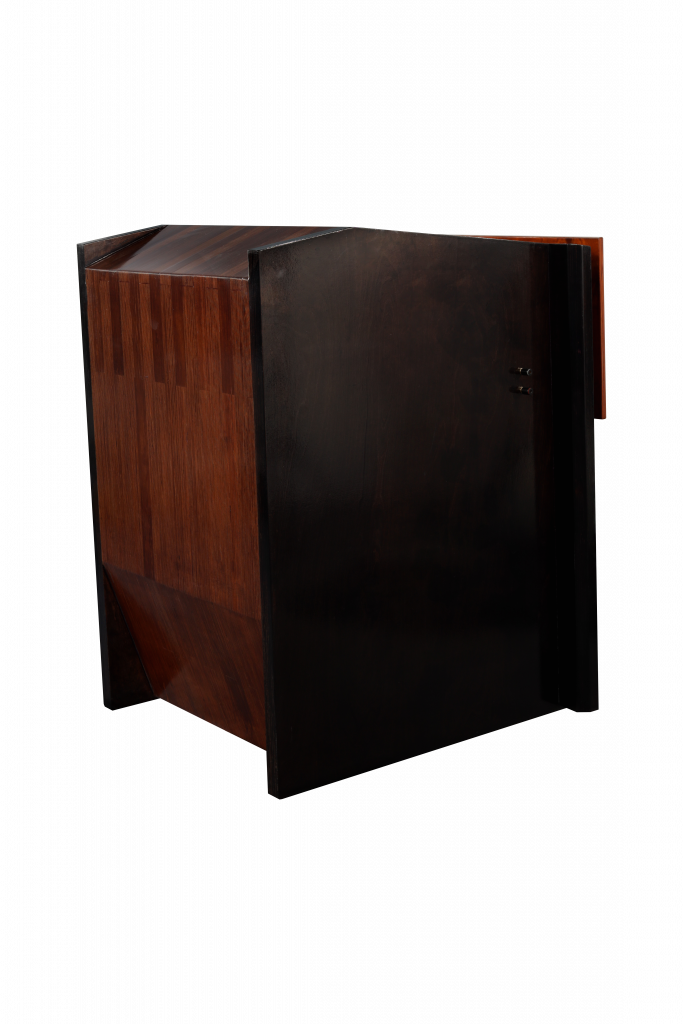

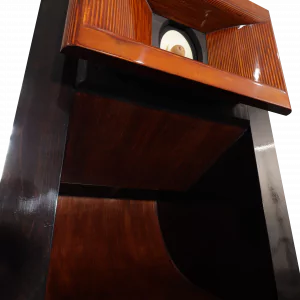

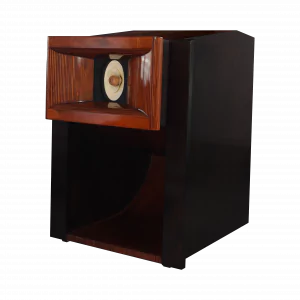

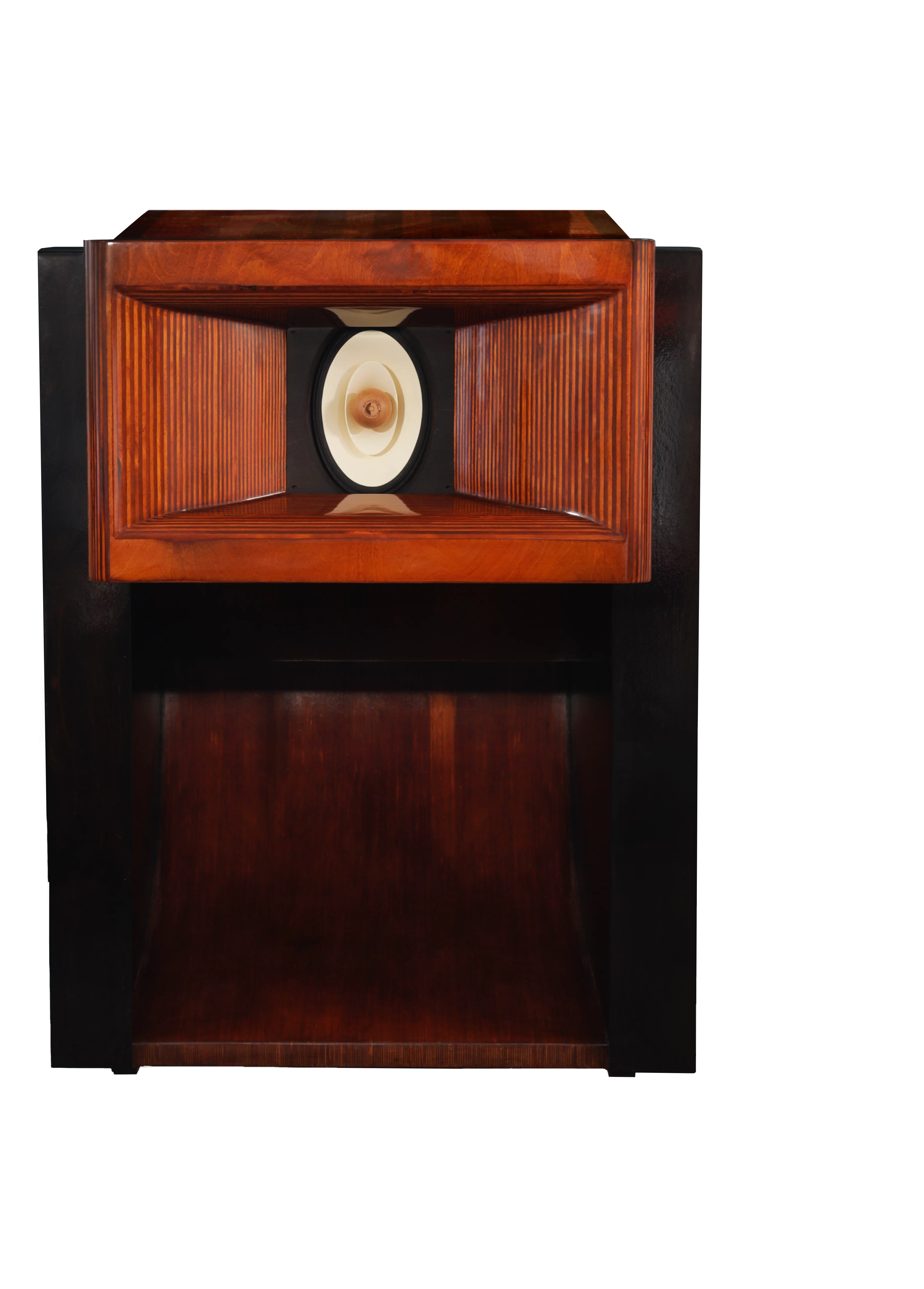

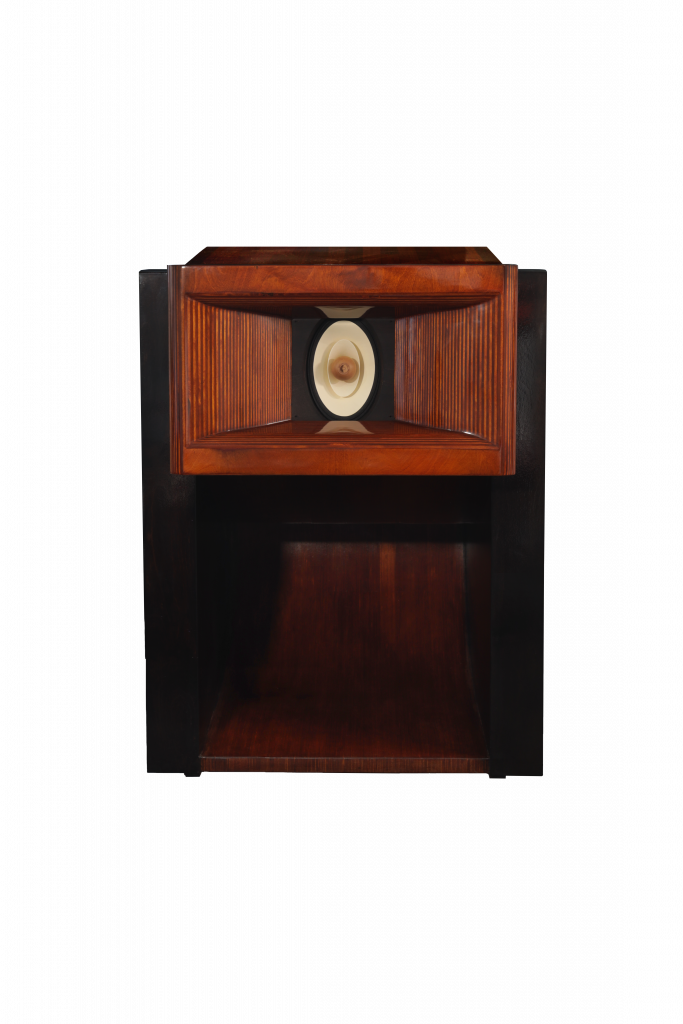

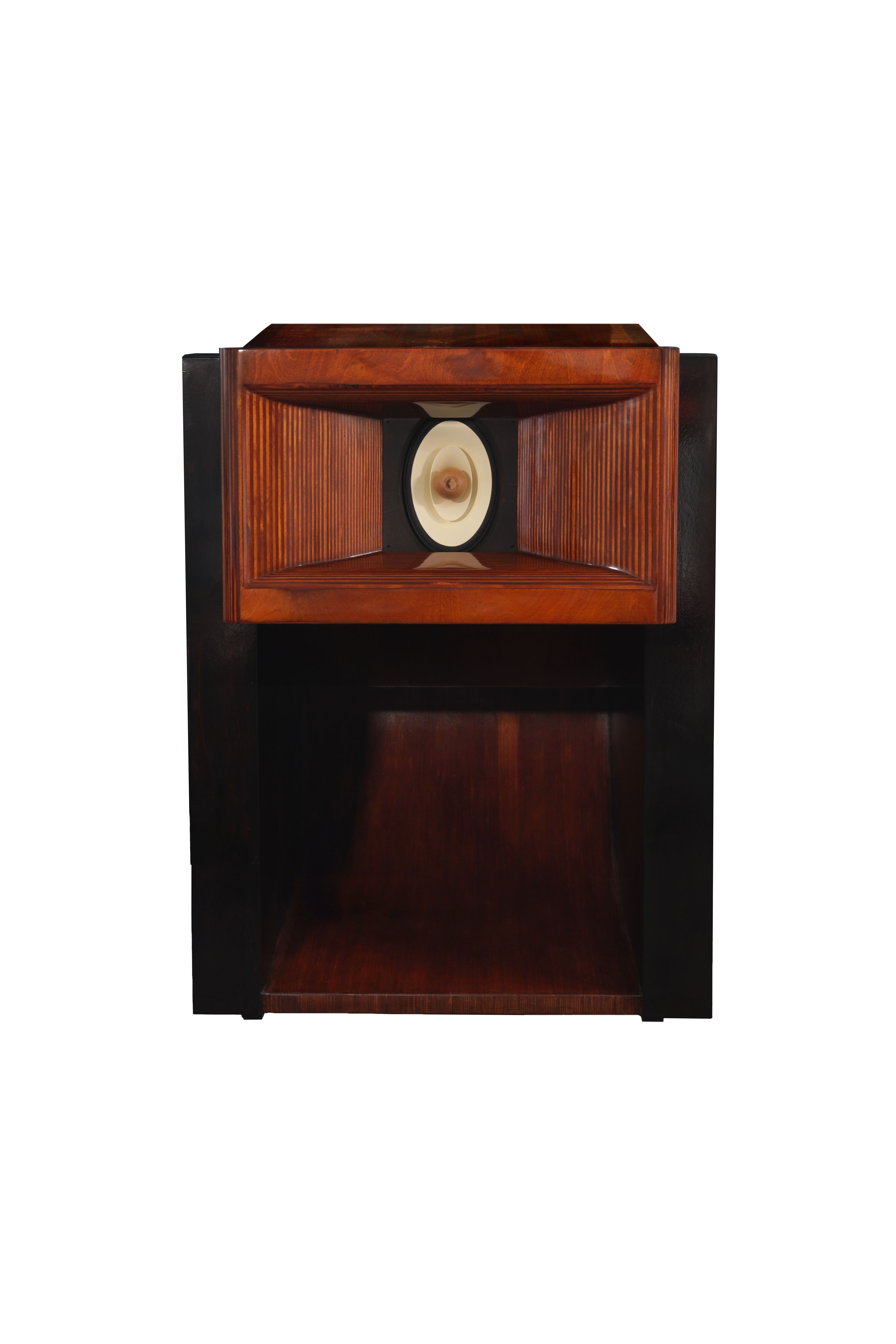

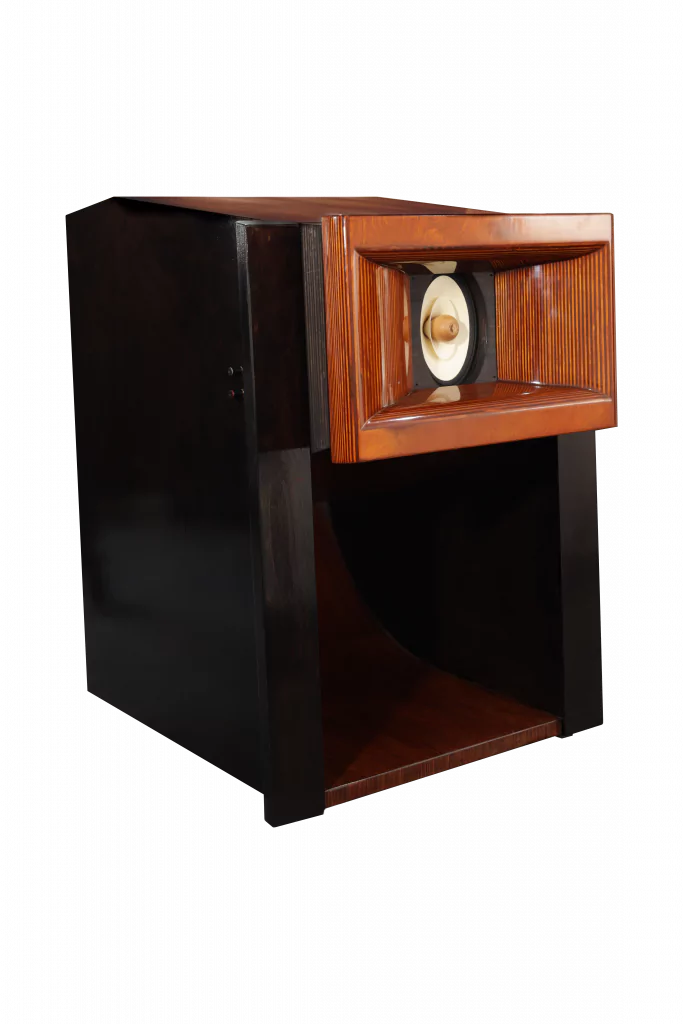

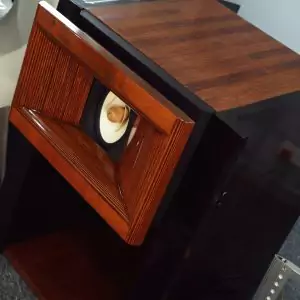

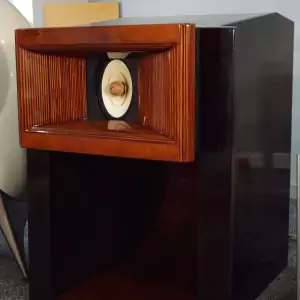

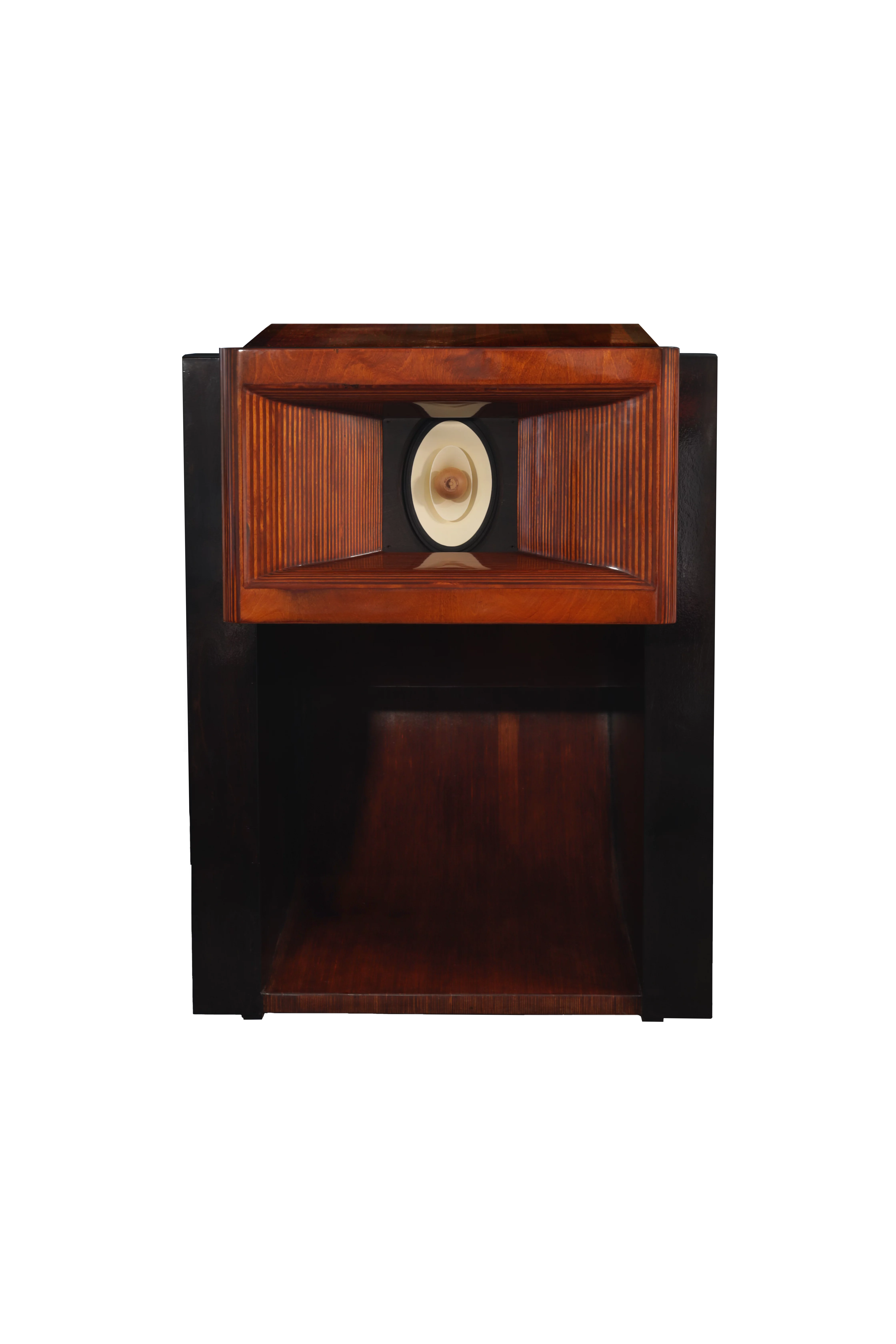

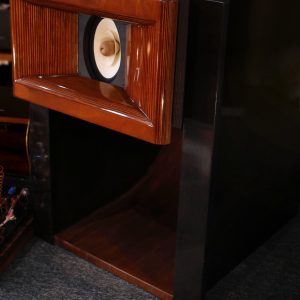

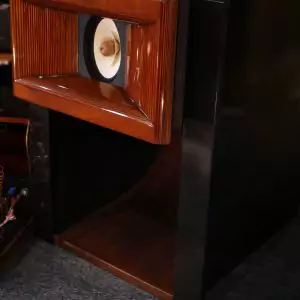

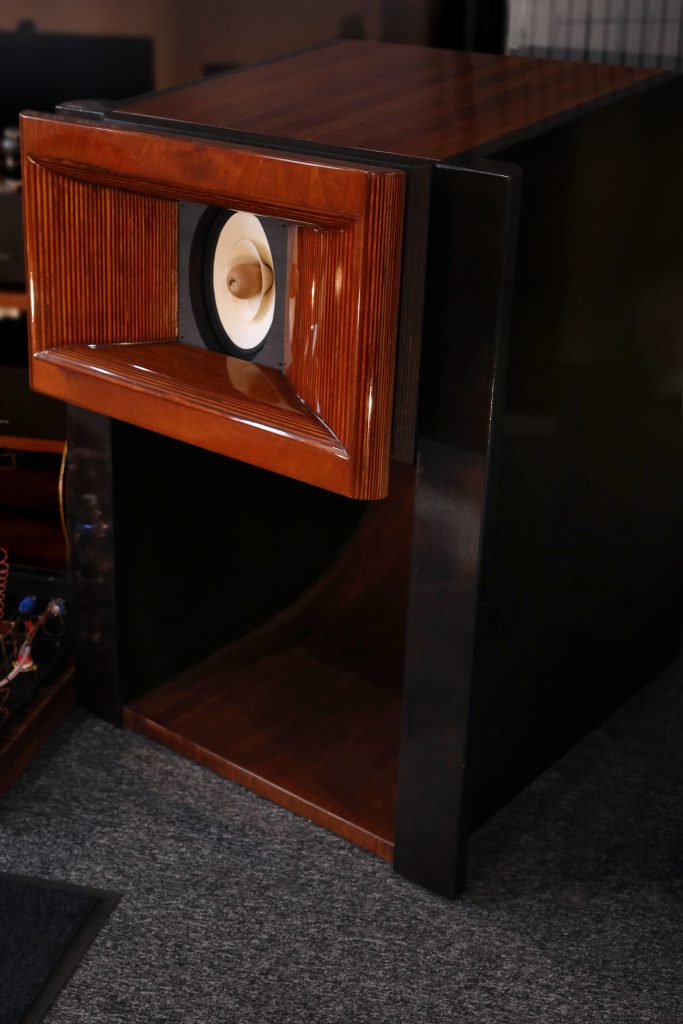

The XCalibur loudspeakers are genuine acoustically loaded, 100% folded horn design made from premium grade Birch plywood. They employ a single full-range driver and follows the same design parameters of our Lady Pearl Horn Loudspeakers which are made from Granite-Epoxy Composite.

XCalibur Horn Loudspeakers

Resurrect the soul of music

The XCalibur loudspeakers are genuine acoustically loaded, 100% folded horn design made from premium grade Birch plywood. They employ a single full-range driver and follows the same design parameters of our Lady Pearl Horn Loudspeakers which are made from Granite-Epoxy Composite.

SW1X Audio Design™ Xcalibur Horn Features:

Genuine, acoustically loaded folded Horn design
Cross-over-less Design
Single 2 in 1 (10″ and 3″ diameter) Fullrange driver with Paper Cone, Cloth Suspension and Solid Wood Phase Plug
or 3 in one (9″, 6″ and 3″ diameter) Concentric, Oval Fullrange driver with Paper Cone, Cloth Suspension and Solid Wood Phase Plug
Available in 2 versions: with AlNiCo magnet or Field Coil

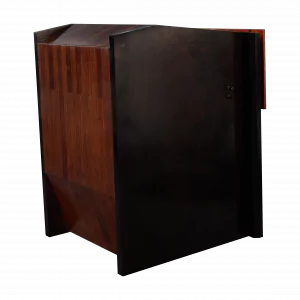

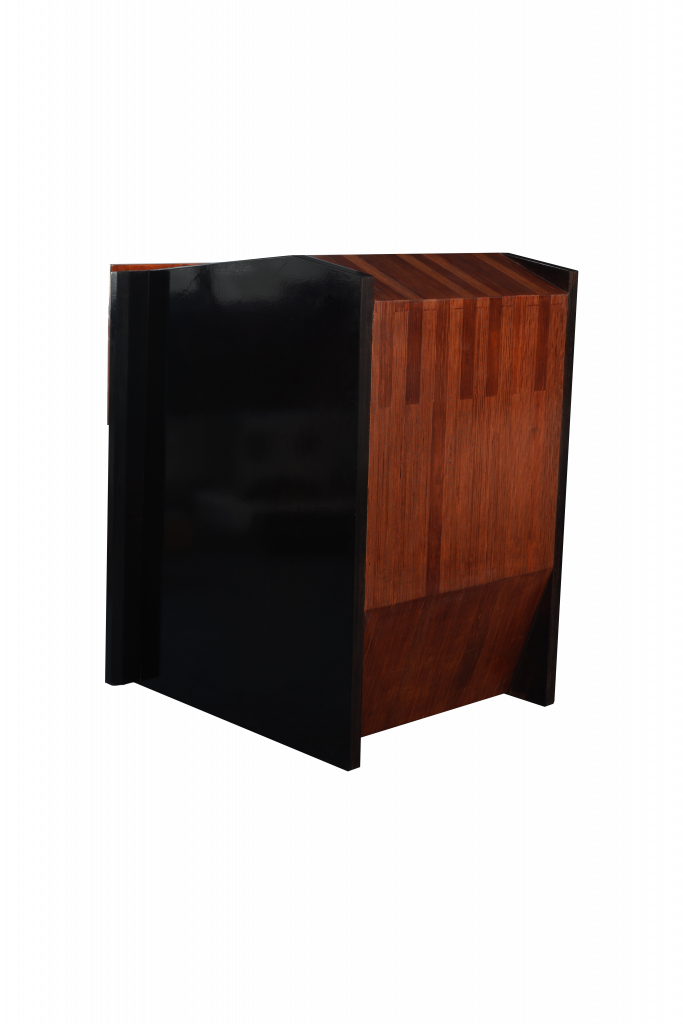

Housed in massive (150kg each) cabinets, every wooden part manufactured from piano instrument grade Birch plywood

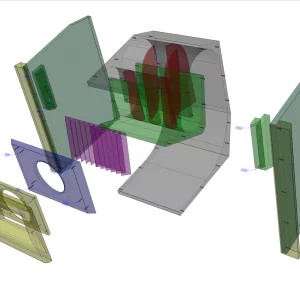

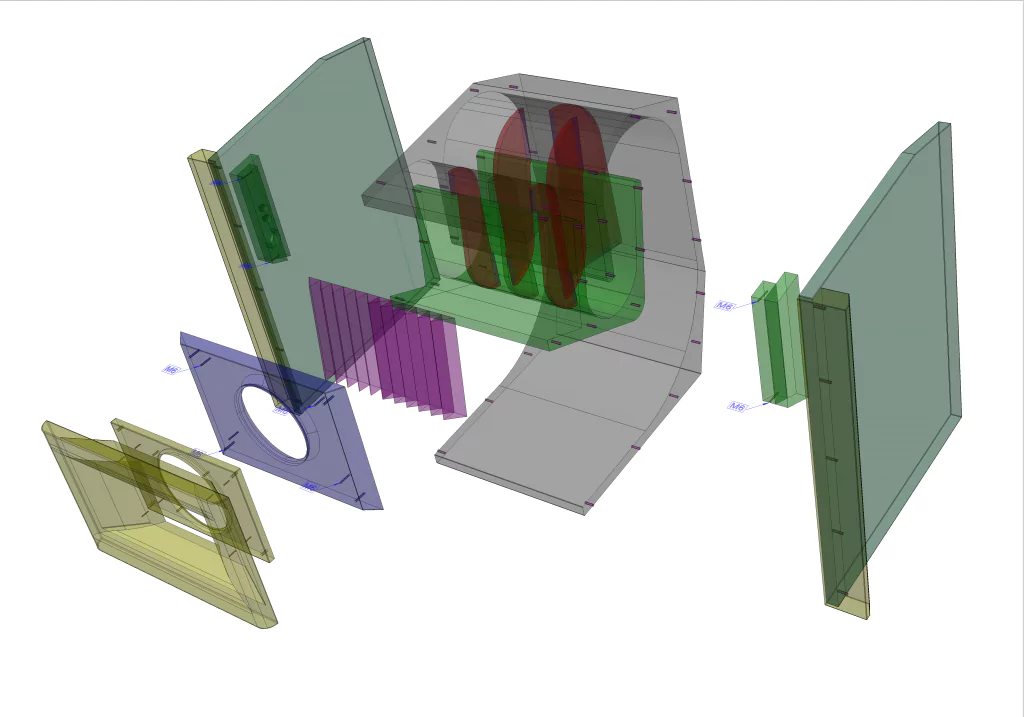

Fine tuned Cabinet is made with 5-axis CNC machinery for maximum consistency.
Horn Cabinet is glued throughout, only few metal screws to fix the drivers are employed
Internally wired exclusively with our SW1X Magnum, Genesis and Opus Copper or Silver (on request) conductors

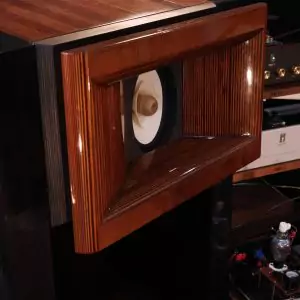

Mid Horn is Gloss finished in real Shellac, a natural lacquer resin
Bass Horn is finished in satin with natural lacquer, rigorously selected for its sound, beauty and durability
Non-synthetic lacquer satin finish is standard, other wood finishes are possible on request.

Specifications

Minimum recommended Power Amplifier Output (W): 1
Average Sensitivity (dB/W/m): 100
Minimum Impedance (Ohm): 8
Frequency Response: flat from 50Hz-20kHz
Dimensions: Height (mm) 1250 x Width (mm) 1000 x Depth (mm) 800
Weight (kg): 150 each cabinet

Specifications

Minimum recommended Power Amplifier Output (W): 1
Average Sensitivity (dB/W/m): 100
Minimum Impedance (Ohm): 8
Frequency Response: flat from 50Hz-20kHz
Dimensions: Height (mm) 1250 x Width (mm) 1000 x Depth (mm) 800
Weight (kg): 150 each cabinet

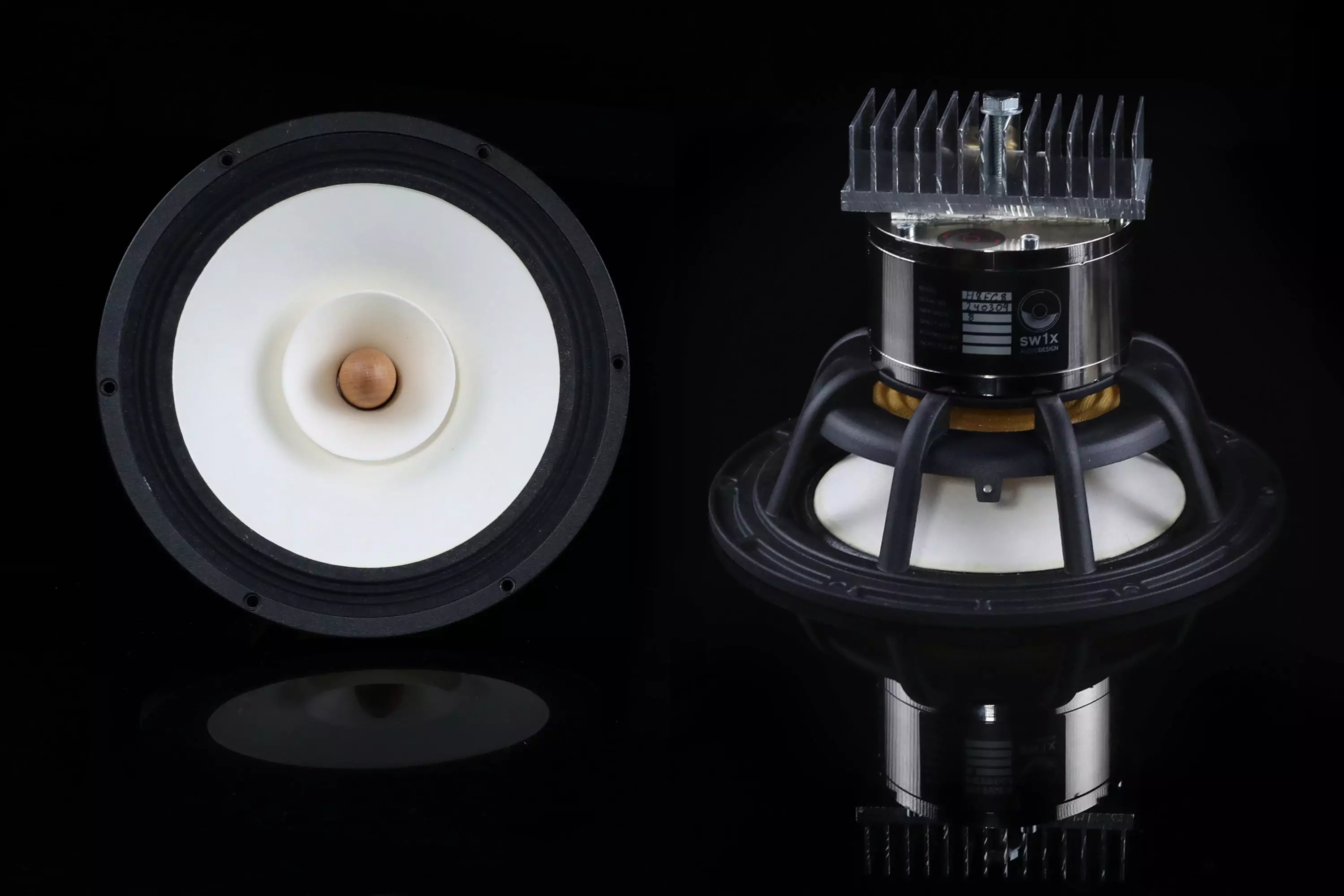

DRIVER OPTIONS

AlNiCo Magnet

Field Coil

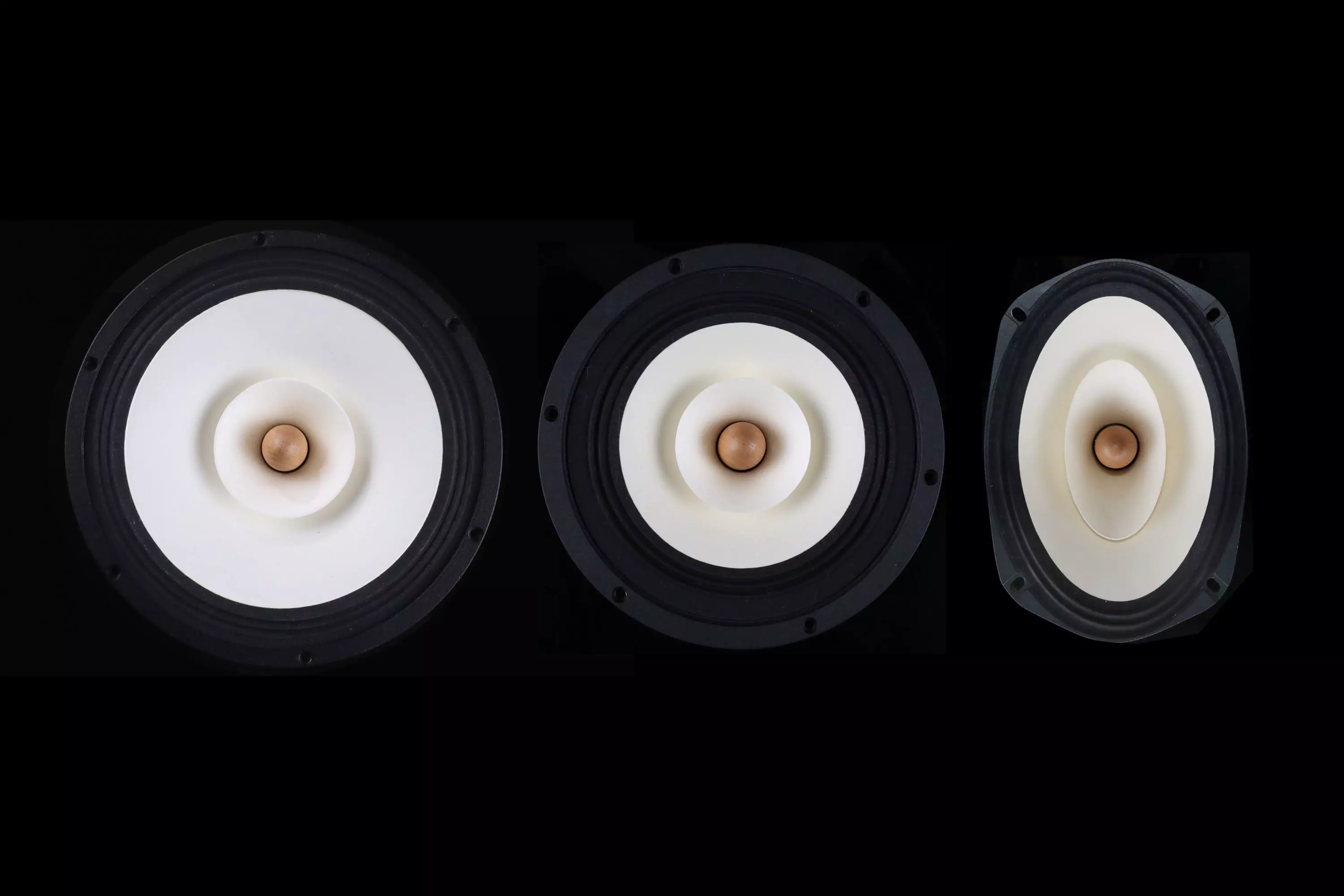

Driver Specifications:

8 Inch, 9inch, 10inch
2 Paper Cones with HF Whizzer
Wooden Phase Plug

All SW1X drivers are all our custom designs, which are specifically designed for our loudspeakers
and are exclusively made to our specs and for us by Sonido.

DRIVER OPTIONS

AlNiCo Magnet

Field Coil

Diver Specifications:

8 Inch
2 Paper Cones with HF Whizzer
Wooden Phase Plug

All SW1X drivers are all our custom designs, which are specifically designed for our loudspeakers
and are exclusively made to our specs and for us by Sonido.

Valve Powered Field Coil Power Supply

High Performance Power Supplies designed to specifically match and drive the field coils. The voltage in the power supply can be adjusted, enabling a fine tuning of tonal balance between high and low frequencies, acting like a natural equaliser.
