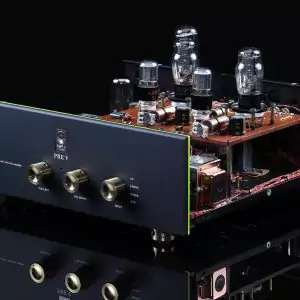

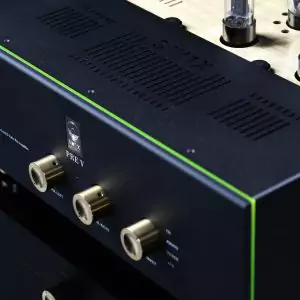

SW1X PRE V Line Pre-Amplifier

PRE V Line Pre-Amplifier

Top-of-the-line DHT Pre-Amplifier

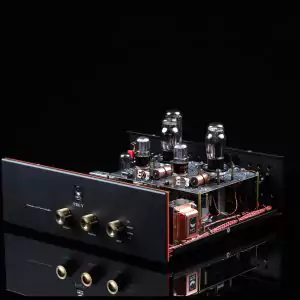

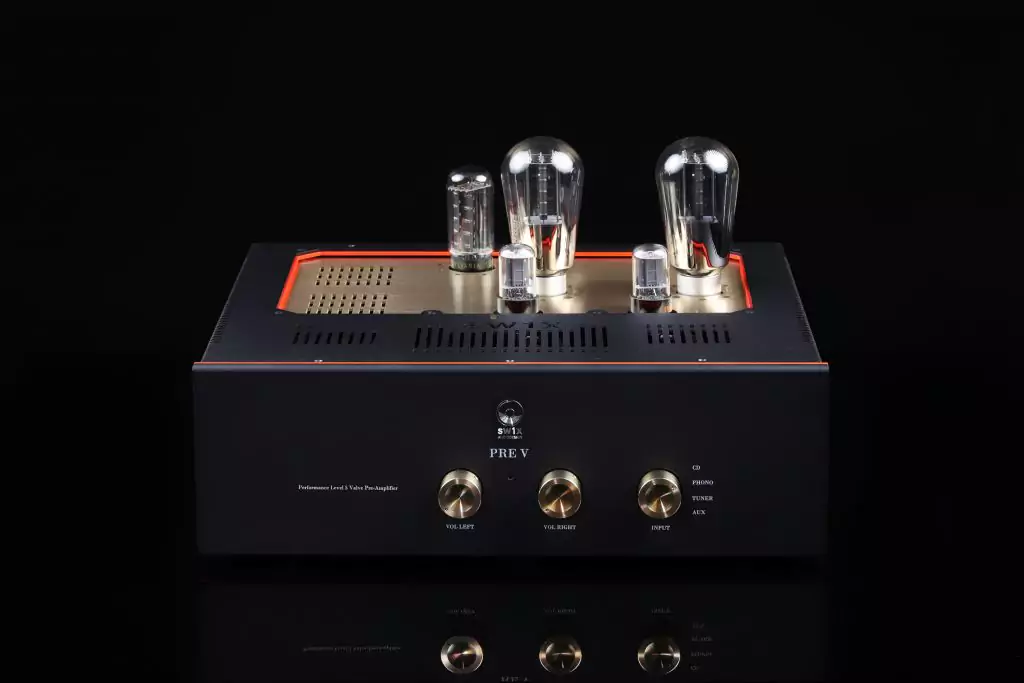

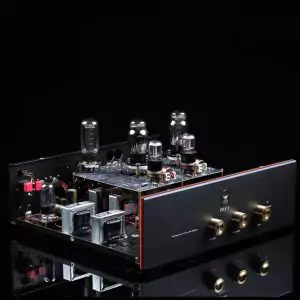

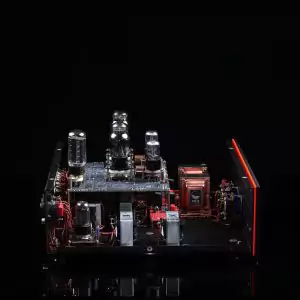

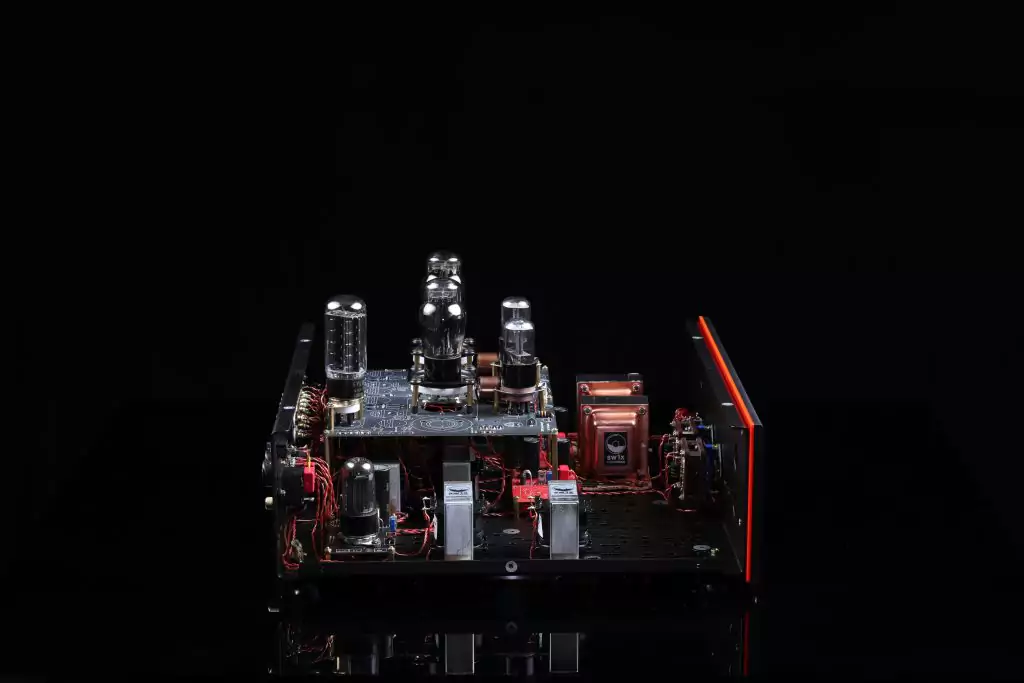

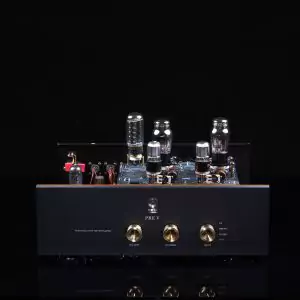

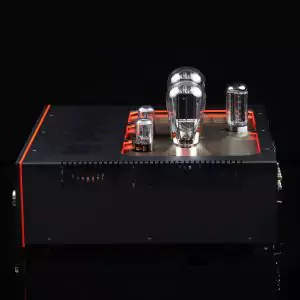

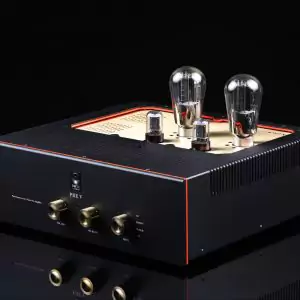

The PRE V is a signal output transformer (OPT) de-coupled 45 DHT tube output stage based, zero negative feedback (zero NFB global or local), line pre-amplifier design. The DHT tube output stage is similar to the output stage as found in our DAC V.

PRE V Line Pre-Amplifier

Top-of-the-line DHT Pre-Amplifier

The PRE V is a signal output transformer (OPT) de-coupled 45 DHT tube output stage based, zero negative feedback (zero NFB global or local), line pre-amplifier design. The DHT tube output stage is similar to the output stage as found in our DAC V.

SW1X Audio Design™ PRE V DHT Line Pre-Amplifier Features:

Specially selected and harmonically matched component & material quality Performance level 5
Copper or Silver wound Super HiB DC-core Signal Output Transformers

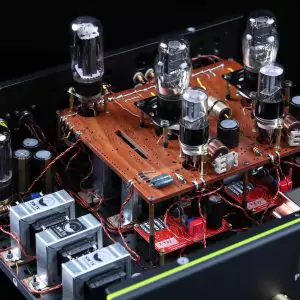

Zero NFB, 2 x 6J5 driver tubes and 2 x 45 Directly Heated Triodes Valve Output Stage
5Z3/5U4G/274B or 80 Directly Heated double diode tube rectified C2xLC (choke filtered) power supply
Vintage, out of production AB 2W & 1W resistors
Dual Mono Stepped attenuators with AB non magnetic carbon resistors

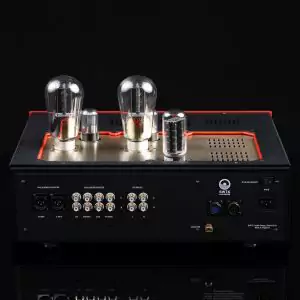

XLR Balanced and RCA Single Ended outputs

Specifications

Tube Compliment: 2 x 6J5, 2 x 45, 1 x 5Z3/5U4
Dimensions: Height (mm) 250 x Width (mm) 440 x Depth (mm) 400
Weight (kg): 23
Max Power Consumption (W): 80
Output Noise, Unweighted (mVrms): < 0.5
Output Impedance (Ohms): <10

Specifications

Tube Compliment: 2 x 6J5, 2 x 45, 1 x 5Z3/5U4
Dimensions: Height (mm) 250 x Width (mm) 440 x Depth (mm) 400
Weight (kg): 23
Max Power Consumption (W): 80
Output Noise, Unweighted (mVrms): < 0.5
Output Impedance (Ohms): <10

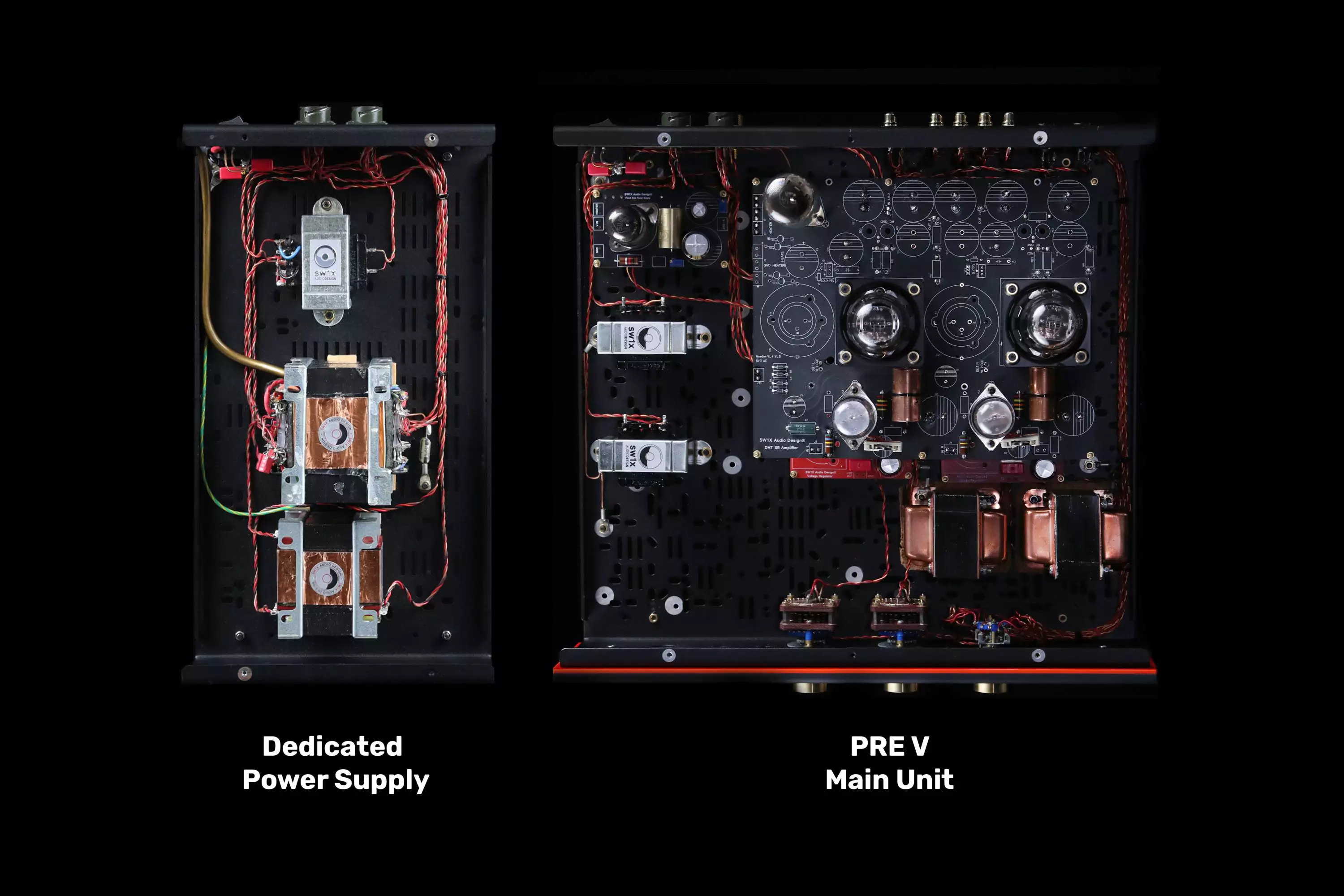

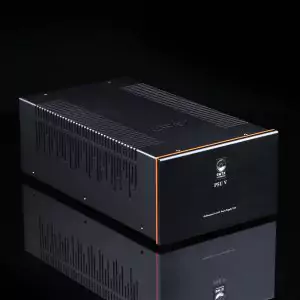

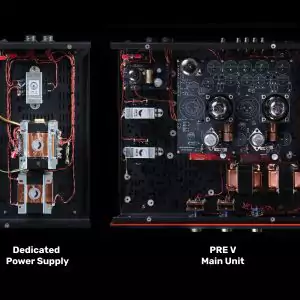

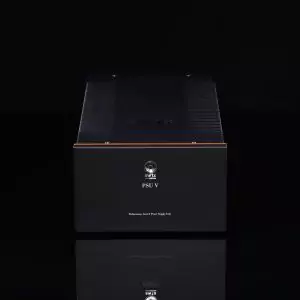

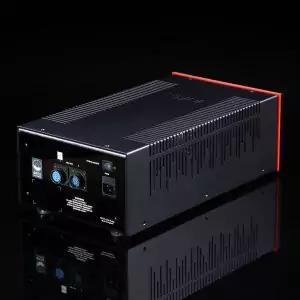

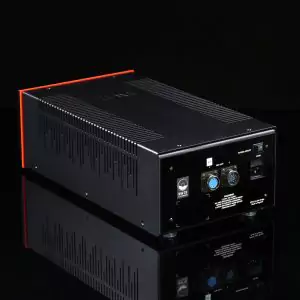

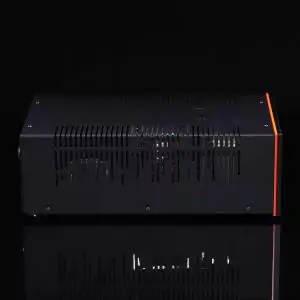

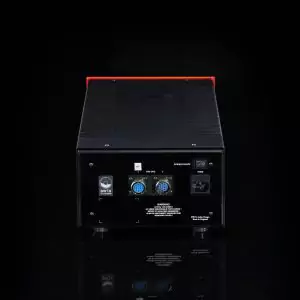

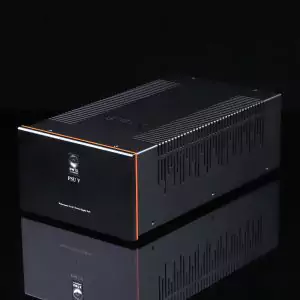

Seperate Power Supply Unit

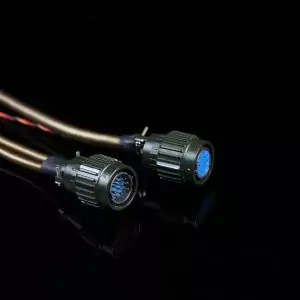

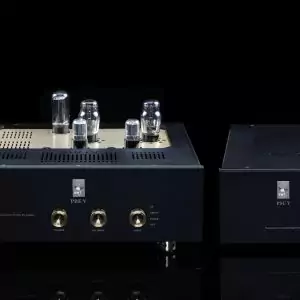

PRE V Line Pre-Amplifier is a unique 2-Chassis Design where the 2nd chassis is seperate power supply, designed to eliminate EMI (electro-magnetic inteference). The two Chassis are connected via quality SW1X Magnum & Twin Opus umbilical cords

Seperate Power Supply Unit

PRE V Line Pre-Amplifier is a unique 2-Chassis Design where the 2nd chassis is seperate power supply, designed to eliminate EMI (electro-magnetic inteference). The two Chassis are connected via quality SW1X Magnum & Twin Opus umbilical cords
