MTR 963 Monitor Loudspeakers

MTR 963 Monitor Loudspeakers

Are you looking for musical, articulate and most coherent loudspeakers to match a low power Single Ended, Class A, Valve Amplifier?

If the answer is yes then you found the solution. The main design goal was to create musically uncompromised, super coherent sounding speakers to harmonically match amplifiers, especially the ones that are designed to be Single Ended and to operate in Class A.

The Near- Medium Field monitors were designed to be timelessly elegant made of great sounding, zero-expense-spared materials & to fullfill following criteria:

Maximum possible Musicality, Transparency & Dynamics
Only achievable with a Single Driver of highest Quality without any X-over
Easy to drive by Low Power, Single Ended, Class A amplifiers

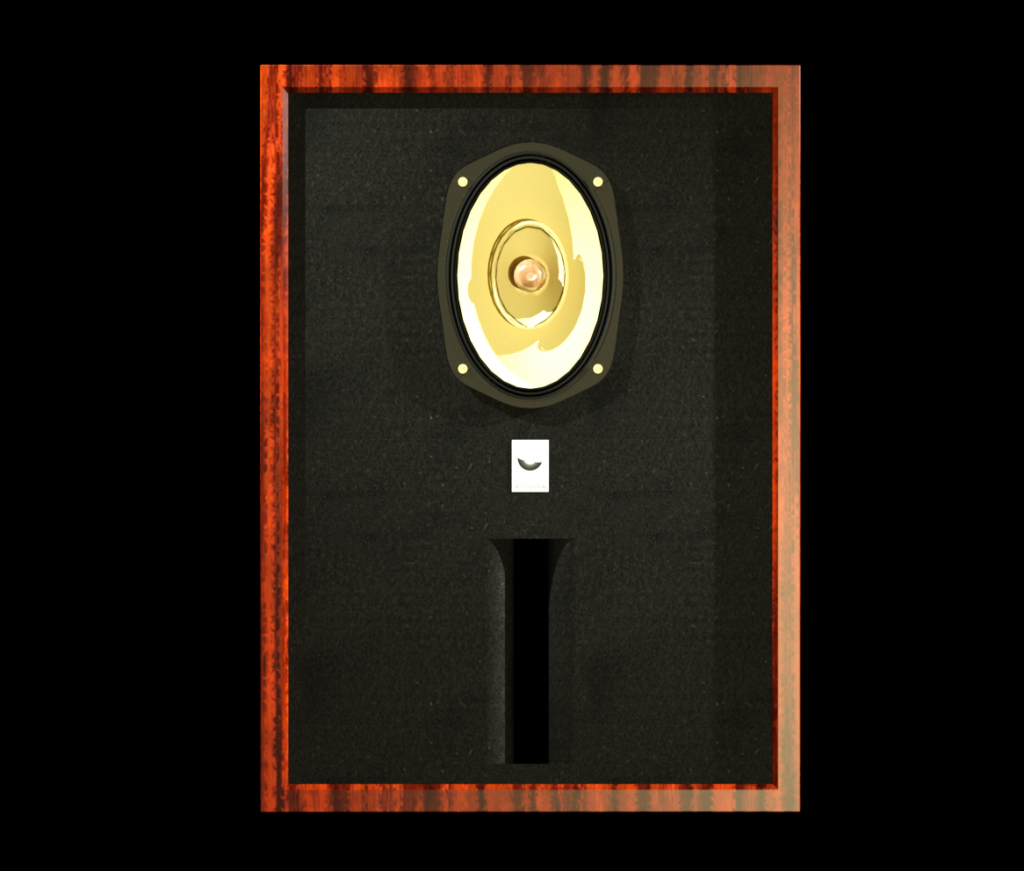

High End MTR 963 Monitor Loudspeaker

High End MTR 693 Monitor Loudspeakers

MTR 963 Monitor Loudspeakers

Are you looking for musical, articulate and most coherent loudspeakers to match a low power Single Ended, Class A, Valve Amplifier?

If the answer is yes then you found the solution. The main design goal was to create musically uncompromised, super coherent sounding speakers to harmonically match amplifiers, especially the ones that are designed to be Single Ended and to operate in Class A.

The Near- Medium Field monitors were designed to be timelessly elegant made of great sounding, zero-expense-spared materials & to fullfill following criteria:

Maximum possible Musicality, Transparency & Dynamics
Only achievable with a Single Driver of highest Quality without any X-over
Easy to drive by Low Power, Single Ended, Class A amplifiers

SW1X Audio Design™ MTR 963 Monitors Features:

Near- Medium Field Monitors ideal for smaller to medium size rooms
Zero additional Passive Components, Cross-over-less Design
Single Fullrange 3 in one (9″, 6″ and 3″ diameter) Concentric Oval drivers with Paper Cones, Cloth Suspension and Solid Wood Phase Plug
Avaiable in 2 versions: with AlNiCo magnets or Field Coils
Housed in massive cabinet, every wooden part manufactured from piano instrument grade Birch plywood, 35mm thickness
Fine tuned Cabinet is made with 5-axis CNC machinery for maximum consistency
Bass ports constructed from Birch plywood are hand-finished
Optimized Damping inside made from Organic Sheepwool
Cabinet is glued throughout, only 4 metal screws to fix the drivers are employed
Internally wired exclusively with our SW1X Magnum, Genesis and Opus Copper or Silver (on request) conductors
Cabinets covered with natural wood veneer, rigorously selected for its beauty and durability
Non-synthetic lacquer coated Rosewood veneer satin finish as standard, other wood finishes are possible on request
Custom Solid Steel Monitor Stands with spikes and bottom pads made from Panzerholz wood

Specifications

Minimum recommended Power Amplifier Output (W): 3
Average Sensitivity (dB/W/m): 94 or 96 depending on the model of a driver
Minimum Impedance (Ohm): 8
Frequency Response: 35Hz-20kHz
Dimensions: Height (mm) 700 (1100 with stands) x Width (mm) 500 x Depth (mm) 300
Weight (kg): 45 each cabinet (without stands)

SW1X MTR 693 Monitor Speakers

MTR 963 Monitor Speaker field coil speakers design

SW1X MTR 693 Monitor Speakers

Specifications

Minimum recommended Power Amplifier Output (W): 3
Average Sensitivity (dB/W/m): 94 or 96 depending on the model of a driver
Minimum Impedance (Ohm): 8
Frequency Response: 35Hz-20kHz
Dimensions: Height (mm) 700 (1100 with stands) x Width (mm) 500 x Depth (mm) 300
Weight (kg): 45 each cabinet (without stands)

SW1X MTR 693 Monitor Speakers

MTR 963 Monitor Speaker field coil speakers design

SW1X MTR 693 Monitor Speakers

DRIVER OPTIONS

AlNiCo Magnet

Field Coil

Driver Specifications:

9 Inch Oval
2 Paper Cones with HF Whizzer
Wooden Phase Plug

All SW1X drivers are all our custom designs, which are specifically designed for our loudspeakers
and are exclusively made to our specs and for us by Sonido.

DRIVER OPTIONS

AlNiCo Magnet

Field Coil

Diver Specifications:

9 Inch Oval
2 Paper Cones with HF Whizzer
Wooden Phase Plug

All SW1X drivers are all our custom designs, which are specifically designed for our loudspeakers
and are exclusively made to our specs and for us by Sonido.

Valve Powered Field Coil Power Supply

High Performance Power Supplies designed to specifically match and drive the field coils. The voltage in the power supply can be adjusted, enabling a fine tuning of tonal balance between high and low frequencies, acting like a natural equaliser.
