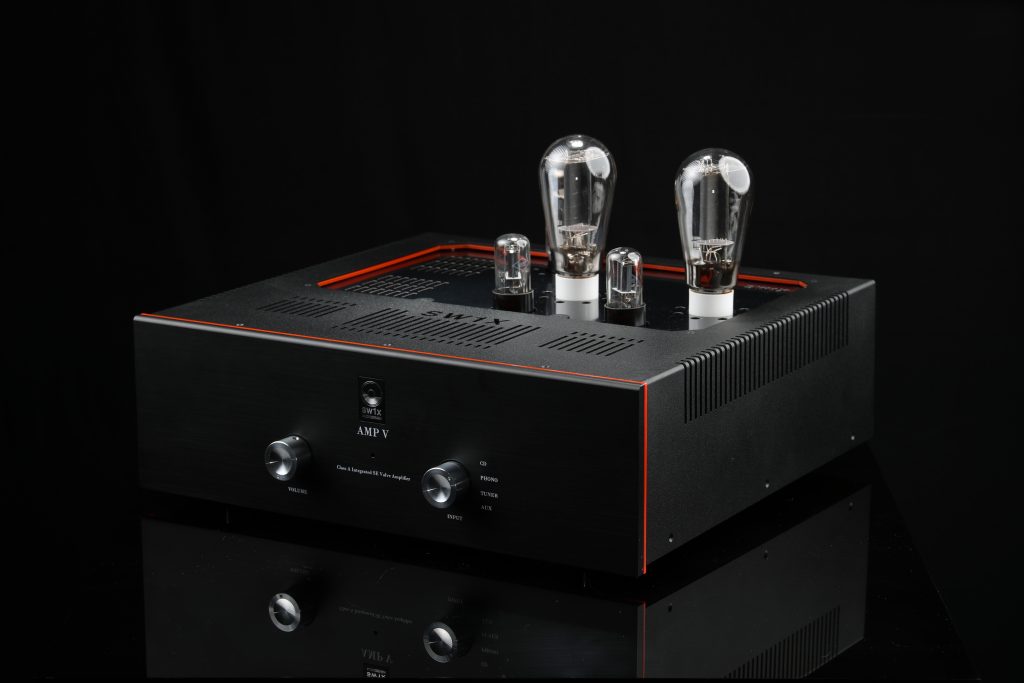

SW1X Audio Design™ AMP V “Titan”
Performance Level 3/4/5
300B DHT Integrated Amplifier
AMP V is a 3 gain stage Power Amplifier coupled with a High Quality Pre-amplifier using our in house designed and in house made stepped attenuator volume control.
It is not only extremely musical but also powerful and in the same time refined sounding Integrated Amplifier.
The Directly Heated 300B Triodes at the output need no introduction. They are driven by equally powerful 6N6P/5687/E182CC driver tubes or by popular 6SN7 input/driver tubes to produce seemsless linear and balanced sound.
Available in different versions: Special and the limited Signature version with different power output transformer options (Permalloy or SHiB and UHiB) and all Copper or Copper/Silver windings
SW1X Audio Design™ AMP V Integrated Amplifier Features:
- Specially Selected and Harmonically Matched Component & Material Quality
- Single Ended, absolutely Zero NFB, Class A, Directly Heated Triode Valve Power Amplifier
- 2 x 6N6P/5687/E182CC or 6SN7 Triode driver/input Stage Valves driving the 2 x 300B DHT Valves
- 3 Amplification Gain Stage Design
- Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
- Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors
- SW1X Audio Design™ Custom Designed Copper wound Super HiB DC Core (50 Watt) Signal Output Transformers
- Quasi Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
- SW1X Custom Design 24 Step Discrete Attentuator Volume Control
- Orient grain M6 EI core mains Transformers & Chokes
- Valve rectified Fixed Bias Power Supply
Tube Compliment:
2 x 6N6P or 6SN7
2 x 300B
1 x 5U4GB
1 x 5Y3
“The Titan imparted class-leading differentiation of dynamics and tonalities between instruments from the four woofers and the field-coil main driver, and the consistency with which the integrated amplifier did so with different recordings highlighted an engineering feat so thorough in forging a signal path of the purest as to be fanatical.”
Constantine Soo – Dagogo.com
Versions:
AMP V is avaiable in 4 Versions with either Satin Silver or Matte Black front Panels with a following output transformer (OPTs) specifications:
Standard : SW1X Audio Design™ all Copper wound, orient grain M6 EI Core OPTs
Special : SW1X Audio Design™ all Copper wound Super HiB DC Core OPTs
Classic : SW1X Audio Design™ Copper/Silver Windings, Super HiB DC Core OPTs
Signature : SW1X Audio Design™ Silver/Silver Windings, Super HiB DC Core OPTs
Optional Extras
- Silver wound SW1X Audio Design™ Custom Designed Super HiB or Ultra HiB DC core Signal Output Transformers
- Fully Hardwired Tube Output Stage on the Bakelite Board
- Fine Silver wiring on the Input, Bakelite Board and Output
- Black Gate VK capacitors in the B+ power supply
- AN 2W non-magnetic Niobium resistors on a Hardwired Bakelite Board
- Super HiB double C-Core mains transformers
- Inter-stage signal decoupling capacitors: 1. Copper Foil in Oil or 2. Silver Foil capacitors
- AN 2W silver, non-magnetic, Tantalum resistors
Ideal partner for High Sensitivity Speakers
Specifications
Single Ended, Class A, Zero NFB, Output Power (W): 8, which sound at least like 50 Watts and the dynamic delivery feel like 500 W when paired with with High Sensitivity Speakers (min 96dB/W/1m is recommended)
- Input Sensitivity (V): 1
- Input Impedance (Ohms): 47K or 100K
- Output Impedance (Ohms): 4 & 8
- Max Power Consumption (W): 200
- Output Noise, Unweighted (mVrms): < 0.5
- Dimensions (without tubes and feet): Height (mm) 250 x Width (mm) 440 x Depth (mm) 400
- Weight (kg): 25
Note: Due to SW1X Audio Design’s ongoing research and development process, specifications are subject to change without notice
