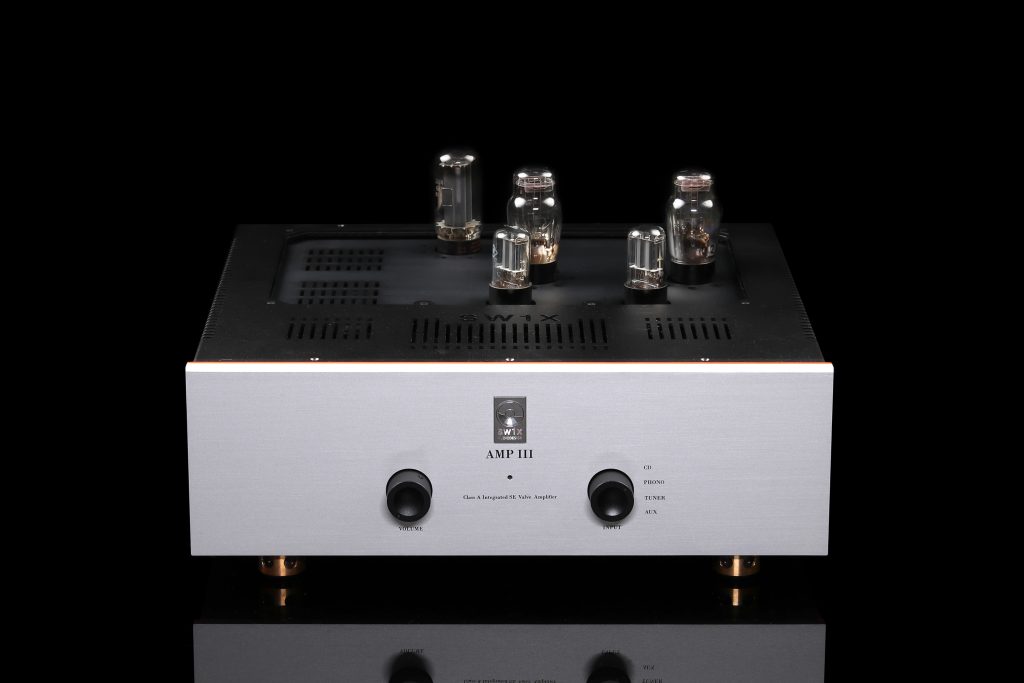

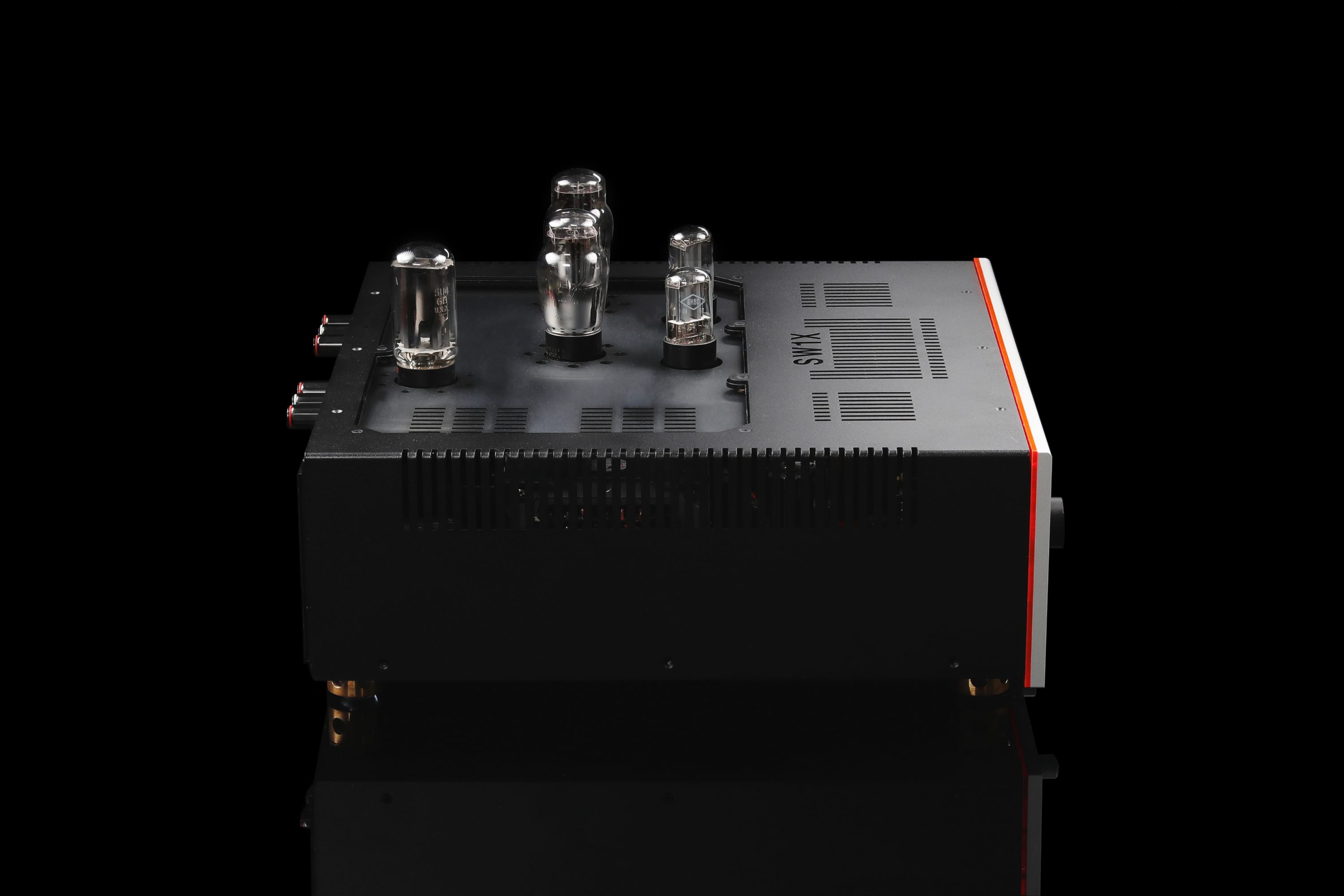

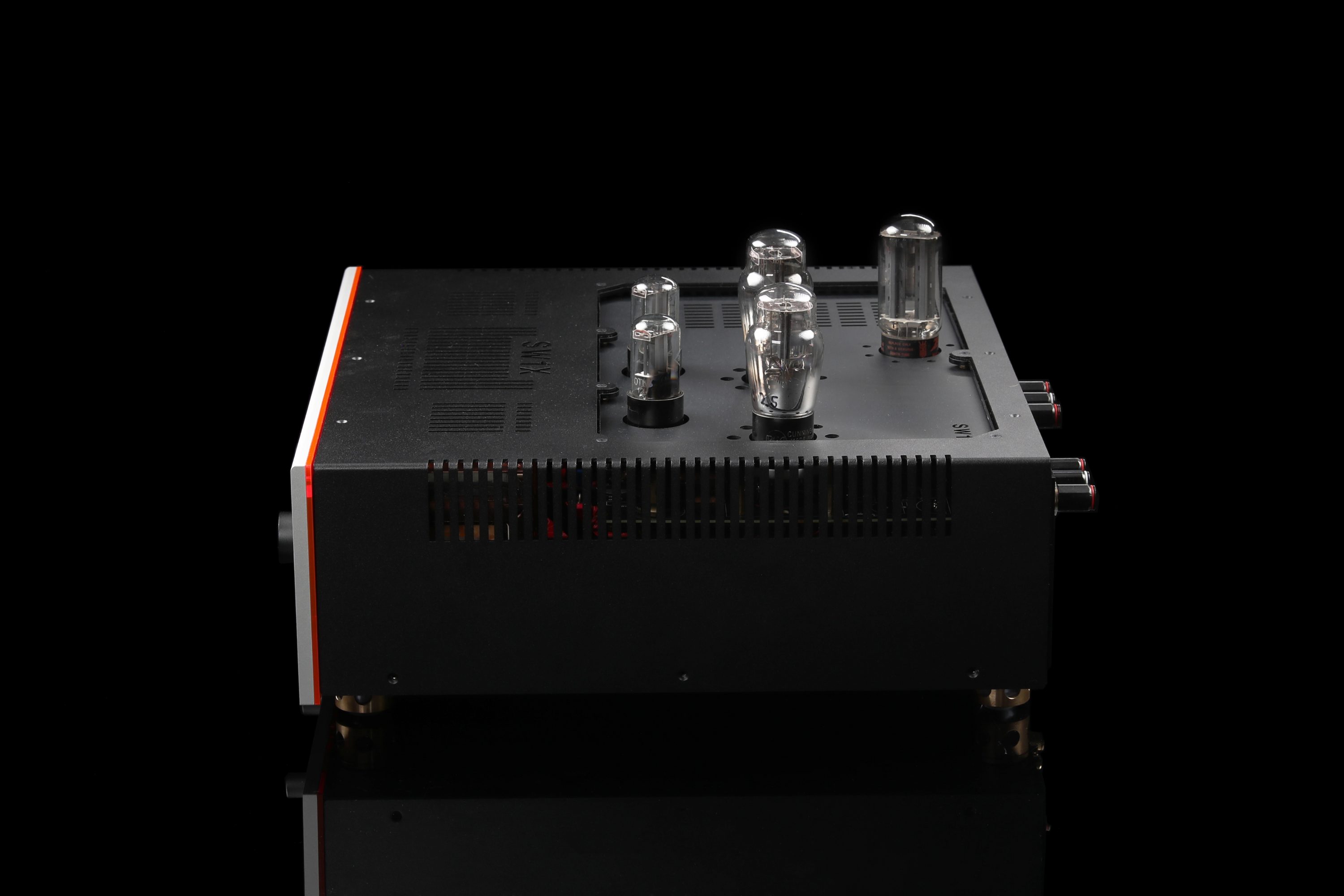

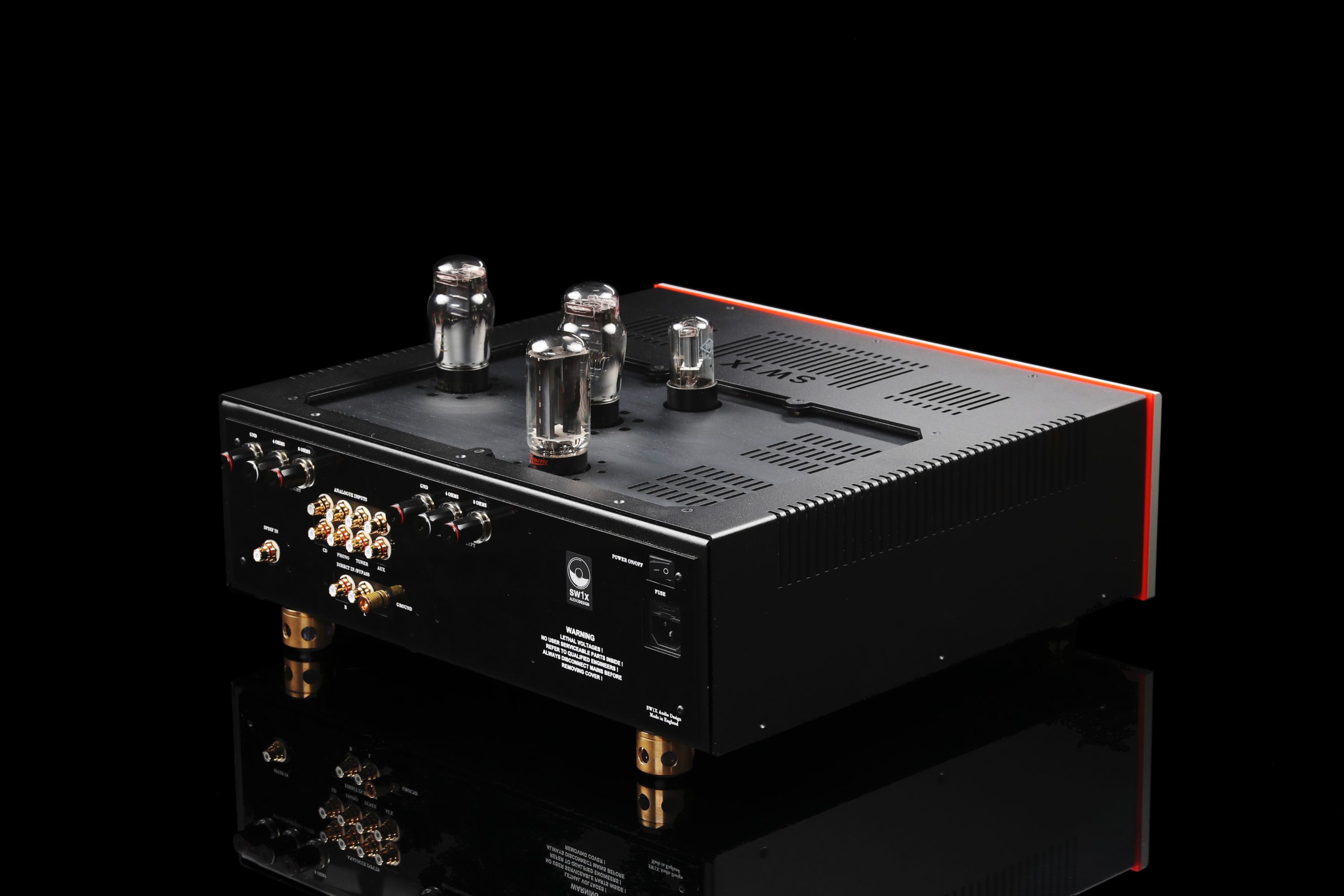

SW1X Audio Design™ AMP III “Trinity”

Performance Level 3/4/5
45 DHT Integrated Amplifier



AMP III is a 2 gain stage Power Amplifier coupled with a High Quality Pre-amplifier using our in house designed and in house made stepped attenuator volume control.

The Directly Heated 45 Triodes at the output are well known for their superbly refined & magical sound signature. They are driven by 6SJ7 valves to produce the classic energetic & emotionally involving sound.

AMP III is extremely refined sounding & musical and also in the same powerful sounding Integrated Amplifier, especially when combined with high sensitivity speakers

(99dB/W/1m sensitivty is recommended).

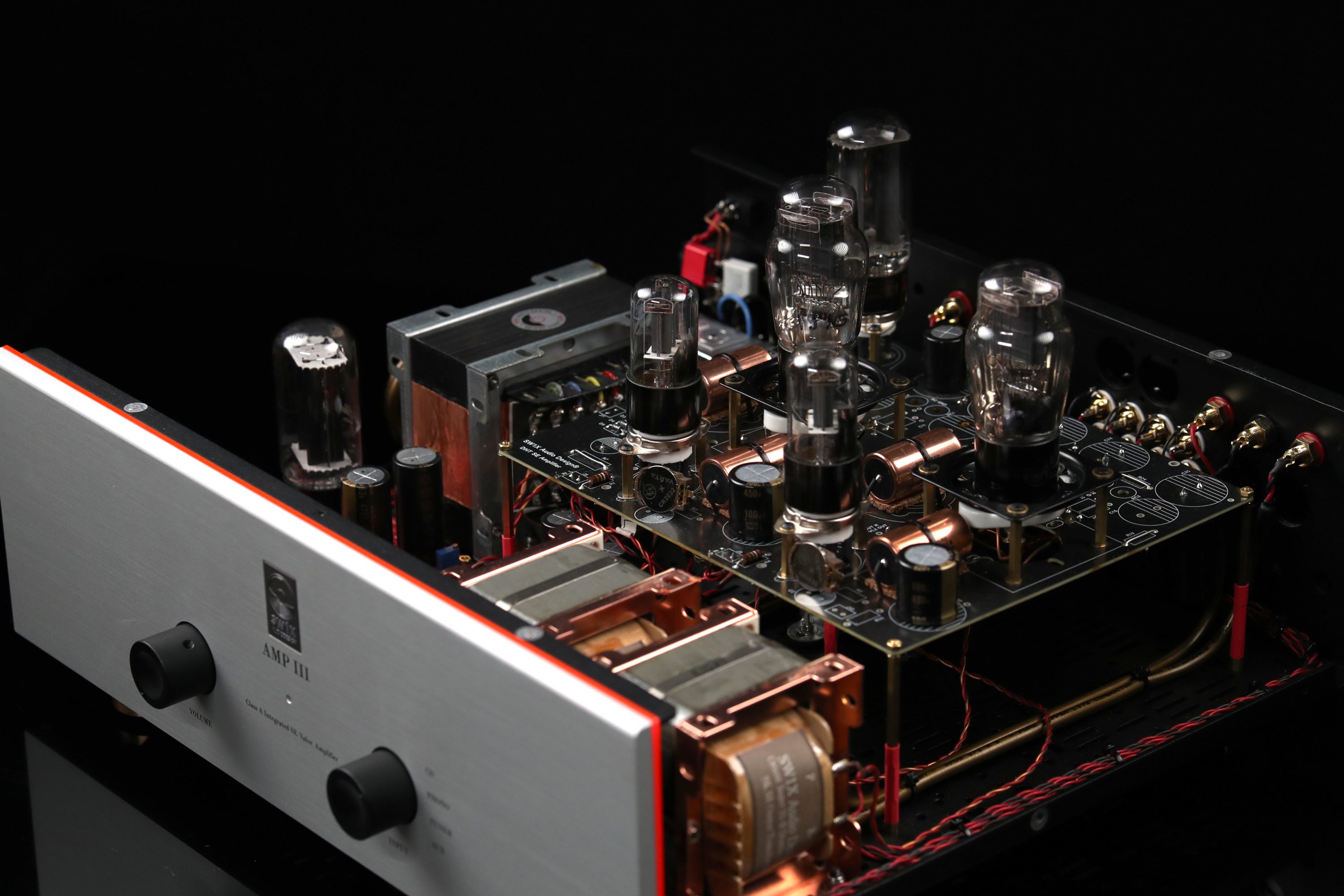

SW1X Audio Design™ AMP III Integrated Amplifier Features:

  • Specially Selected and Harmonically Matched Component & Material Quality
  • Single Ended, absolutely Zero NFB, Class A, Directly Heated Triode Valve Power Amplifier

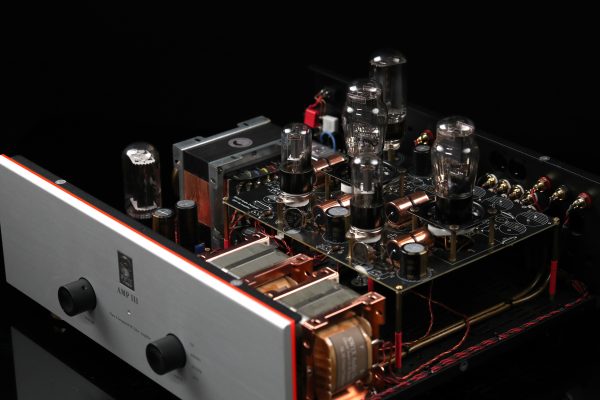

  • 2 x 6SJ7 Valve Driver/input Stage driving the 2 x 45 DHT Valves
  • 2 Amplification Gain Stage Design

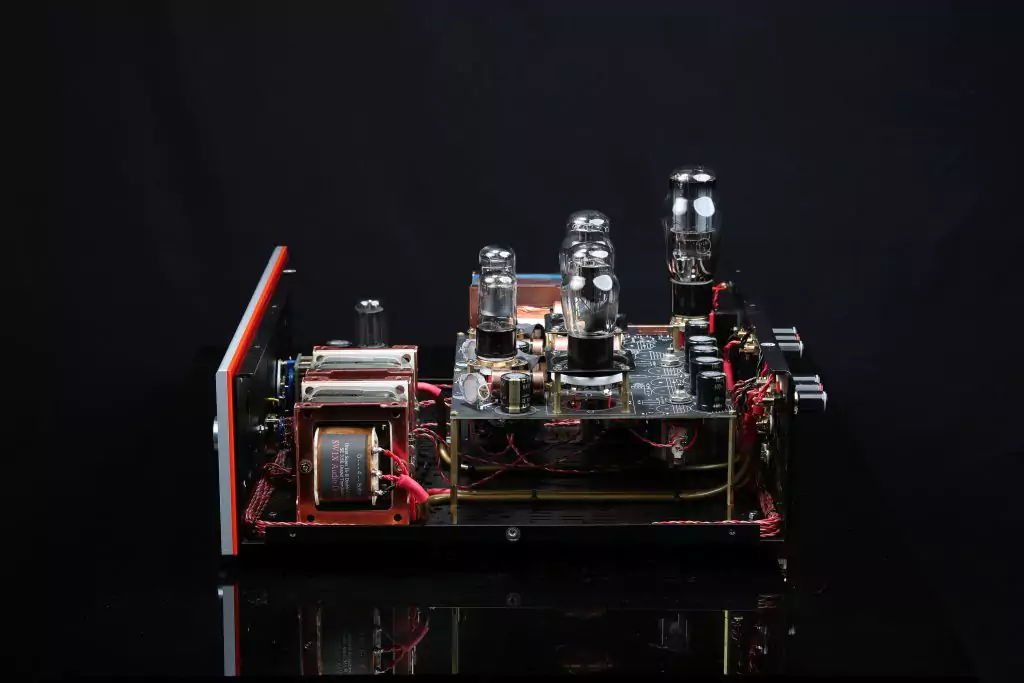

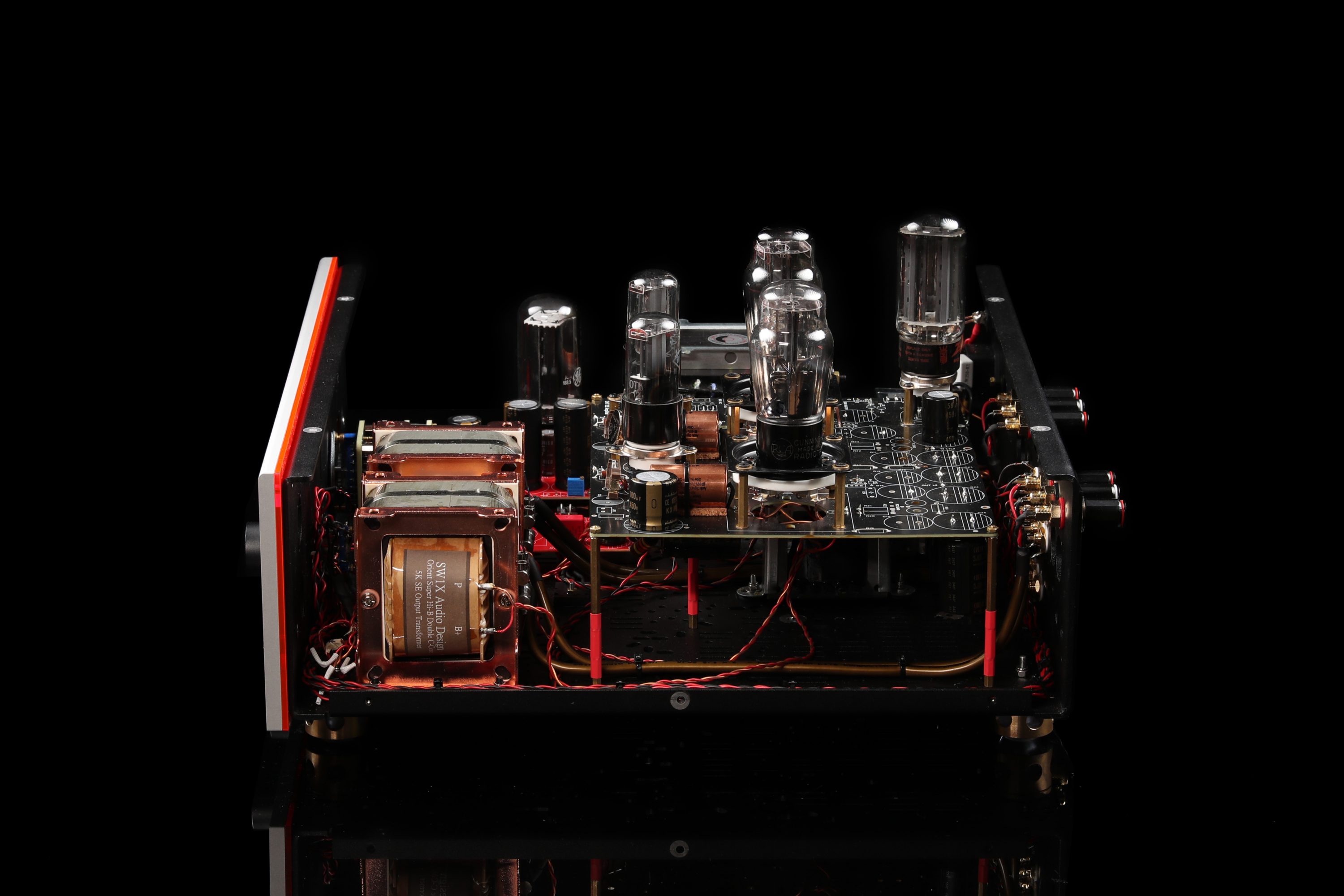

  • Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
  • Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors

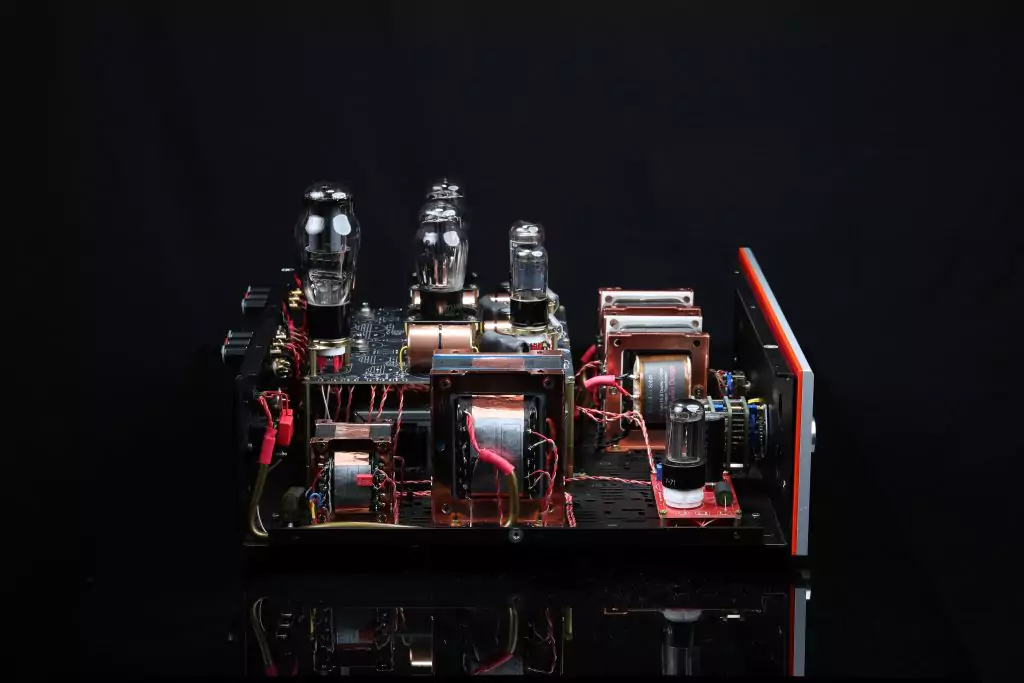

  • SW1X Audio DesignCustom Designed Copper wound Super HiB DC Core (50 Watt) Signal Output Transformers

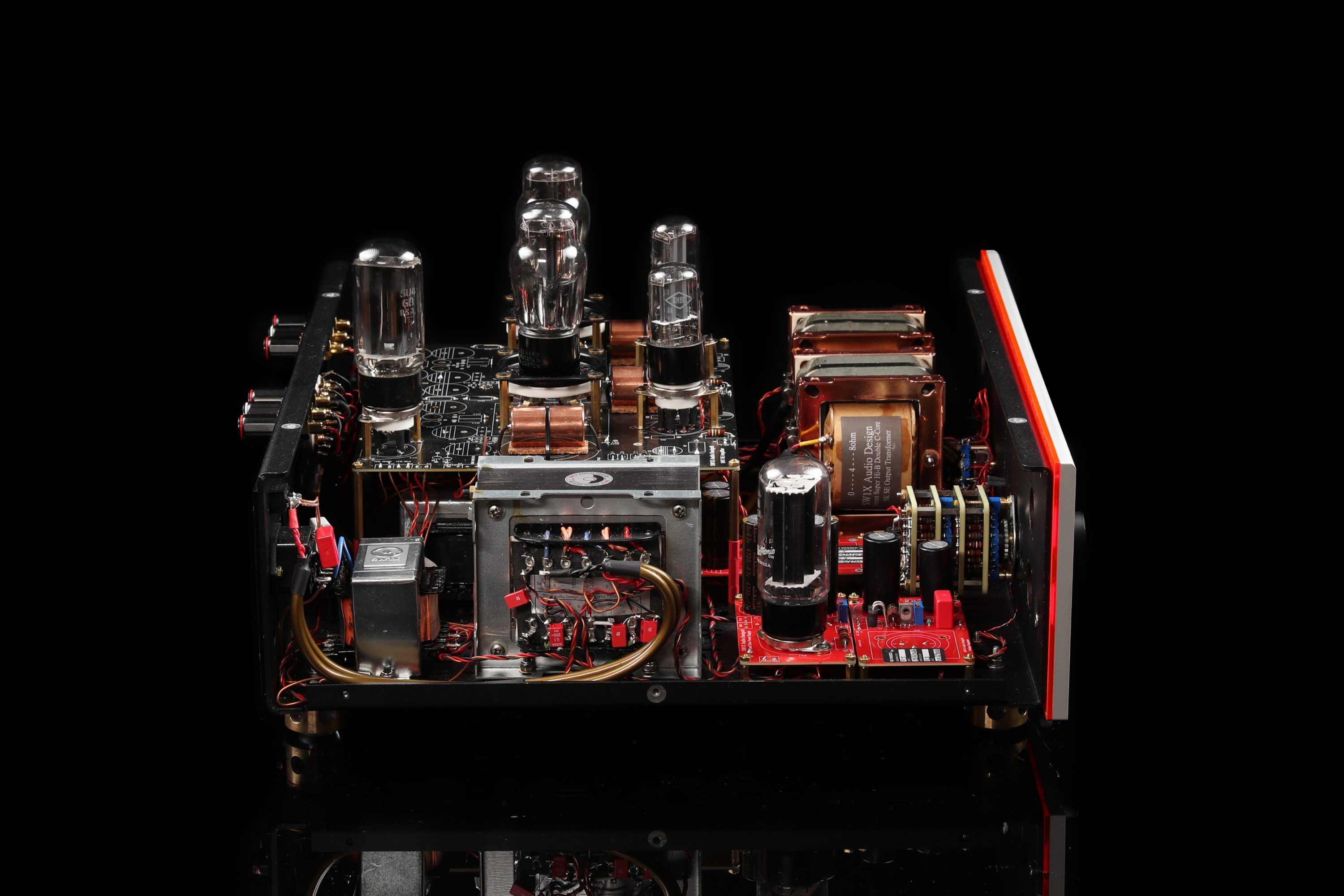

  • Quasi Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
  • SW1X 24 Step Discrete Attentuator Volume Control
  • Orient grain M6 EI core mains Transformers & Chokes
  • Valve rectified Fixed Bias Power Supply



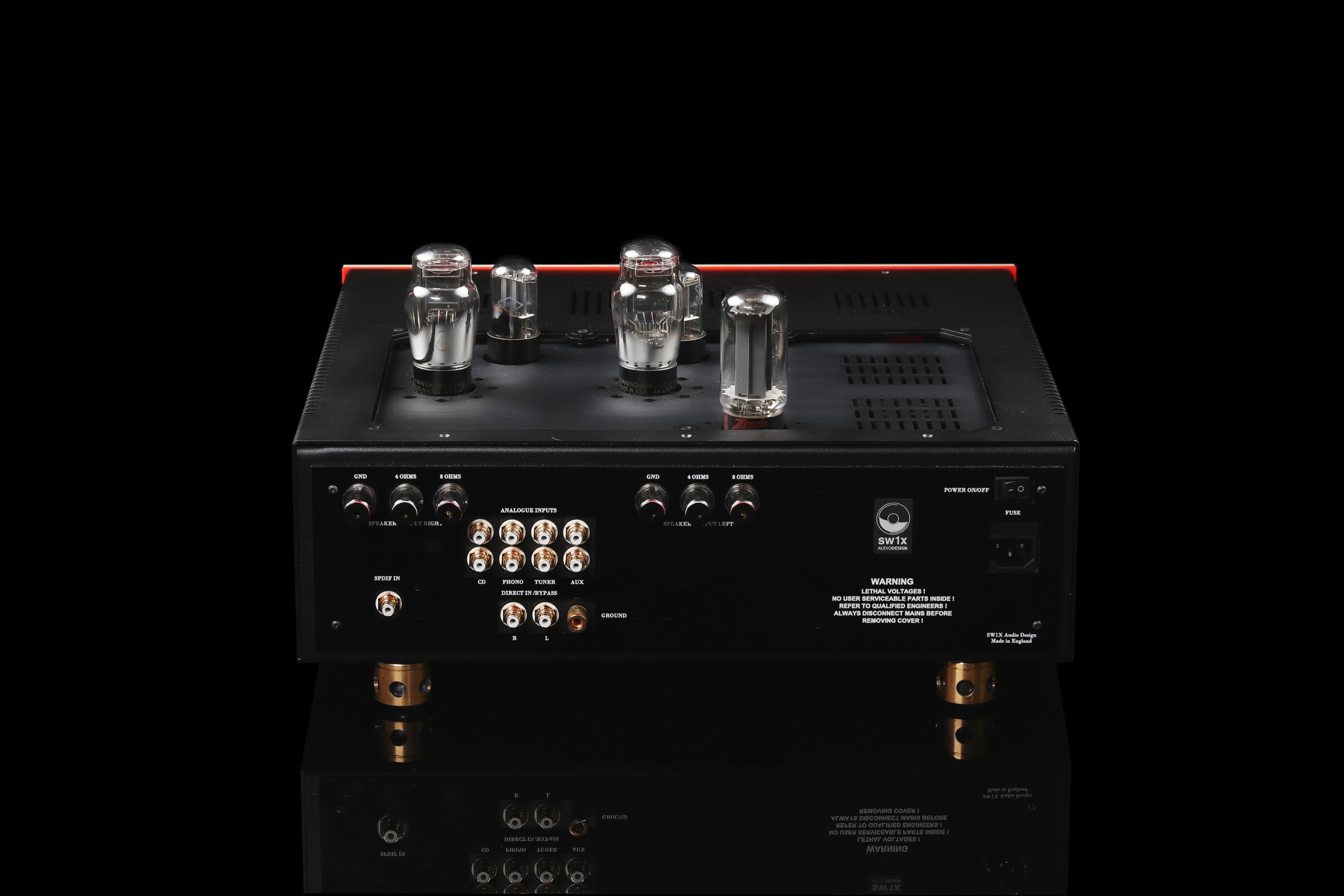

Tube Compliment:  2 x 6SJ7, 2 x 45, 1 x 5U4G, 1 x 5Y3

Reviews

AMP III is avaiable in 4 Versions with either Satin Silver or Matte Black front Panels

with a following output transformer (OPTs) specifications:

  • Standard : SW1X Audio Design all Copper wound, orient grain M6 EI Core OPTs
  • Special :  SW1X Audio Designall Copper wound Super HiB DC Core OPTs
  • Classic : SW1X Audio DesignCopper/Silver Windings, Super HiB DC Core OPTs
  • Signature : SW1X Audio Design™ Silver/Silver Windings, Super HiB DC Core OPTs



SW1X Audio Transformers

Optional Extras

  • Fully Hardwired Tube Output Stage on the Bakelite Board
  • Fine Silver wiring on the Input, Bakelite Board and Output
  • Silver wound SW1X Audio DesignCustom Designed Super HiB or Ultra HiB DC core Signal Output Transformers
  • Black Gate VK capacitors in the B+ power supply
  • AN 2W non-magnetic Niobium resistors on a Hardwired Bakelite Board
  • Super HiB double C-Core mains transformers
  • Inter-stage signal decoupling capacitors: 1. Copper Foil in Oil or 2. Silver Foil capacitors
  • AN 2W silver, non-magnetic, Tantalum resistors





Specifications

Single Ended, Class A, Zero NFB, Output Power (W): 2, which sound at least like 15 Watts and the dynamic delivery feel like 150 W

when paired with with High Sensitivity Speakers (min 99dB/W/1m is recommended)

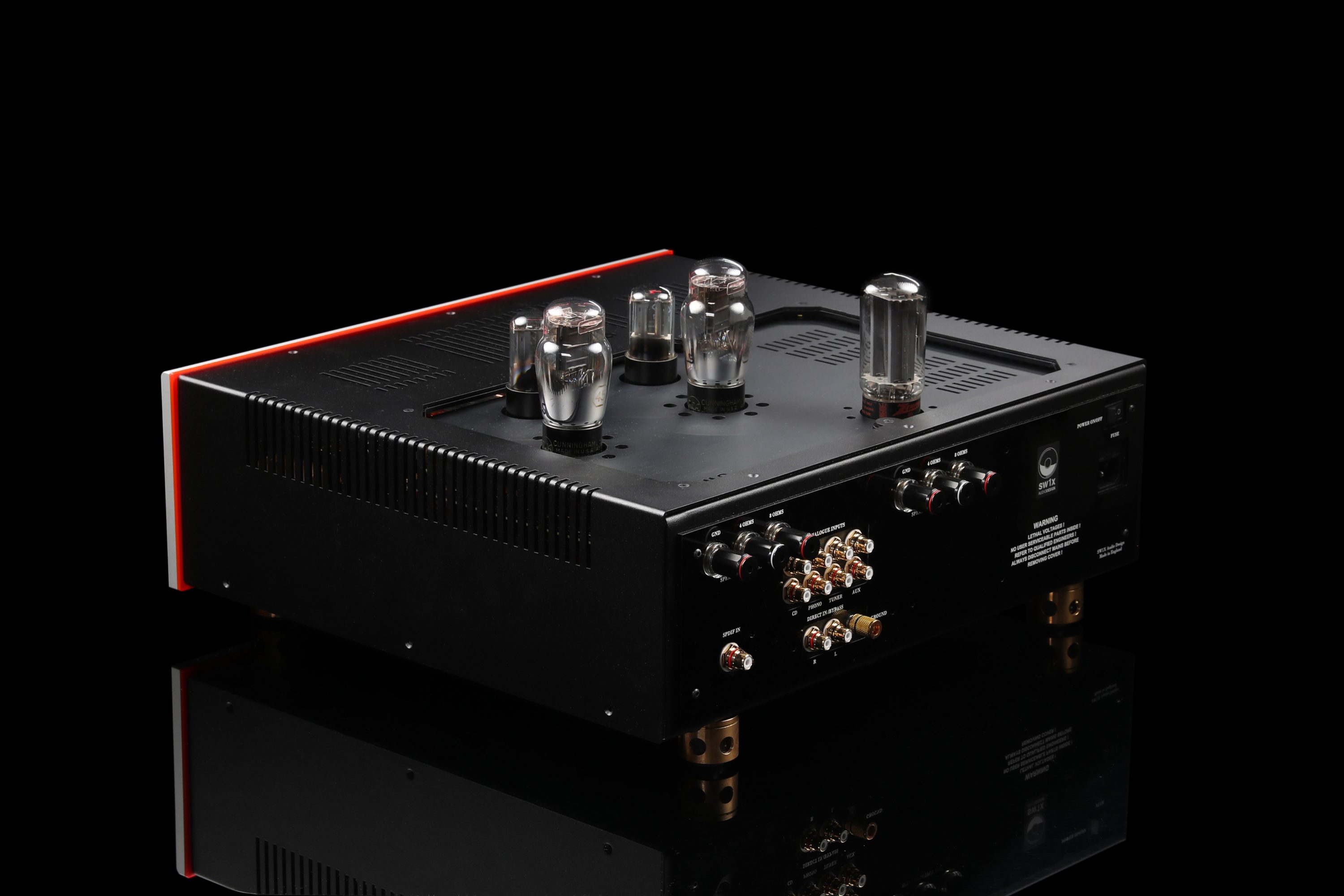

Input Sensitivity (V): 1

Input Impedance (Ohms): 47K or 100K

Output Impedance (Ohms): 4 & 8

Max Power Consumption (W): 200

Output Noise, Unweighted (mVrms): < 0.5

Dimensions (without tubes and feet): Height (mm) 250 x Width (mm) 440 x Depth (mm) 400

Weight (kg): 25



SW1X Integrated Amplifier Products Overview

Note: Due to SW1X Audio Design’s ongoing research and development process, specifications are subject to change without notice
