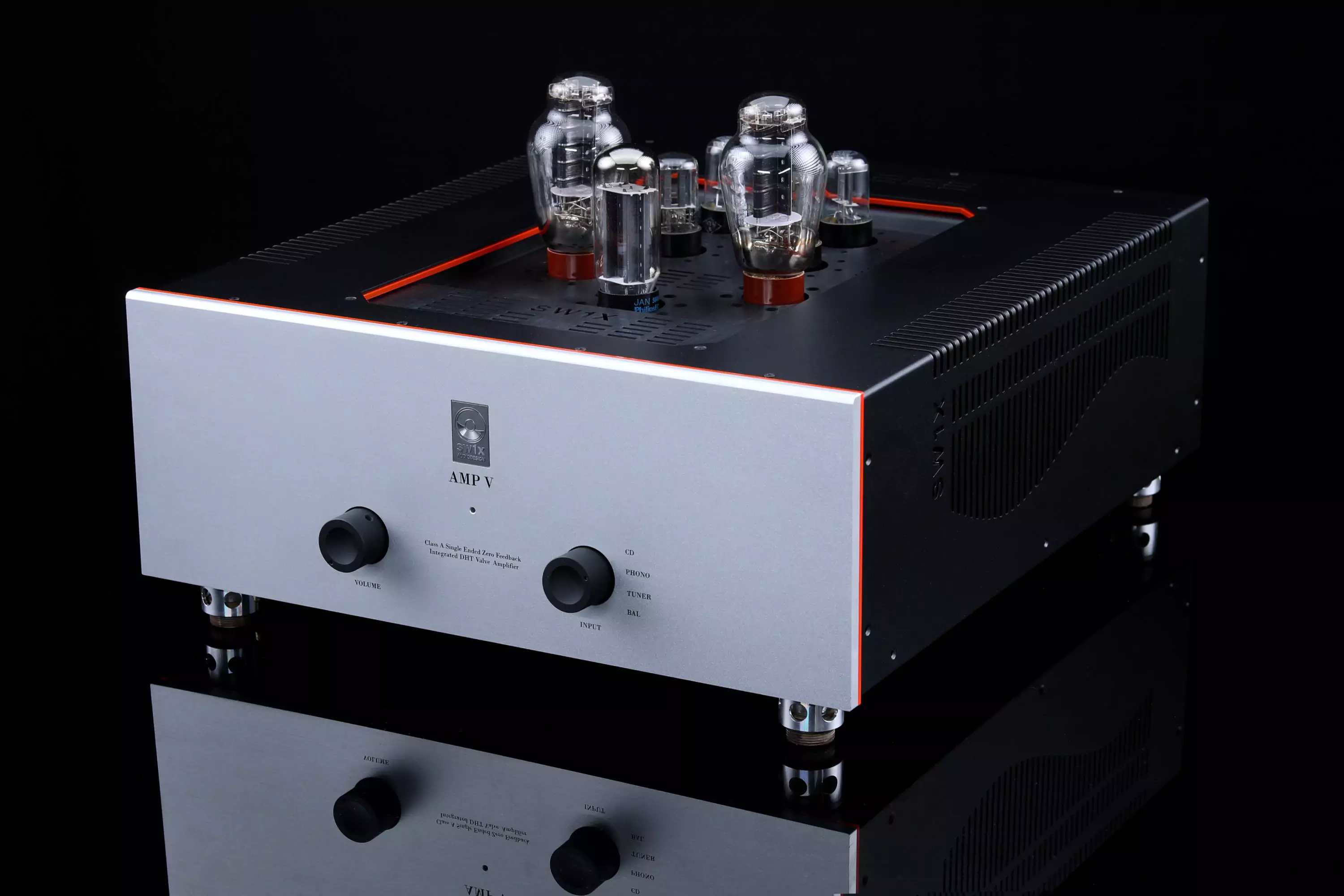

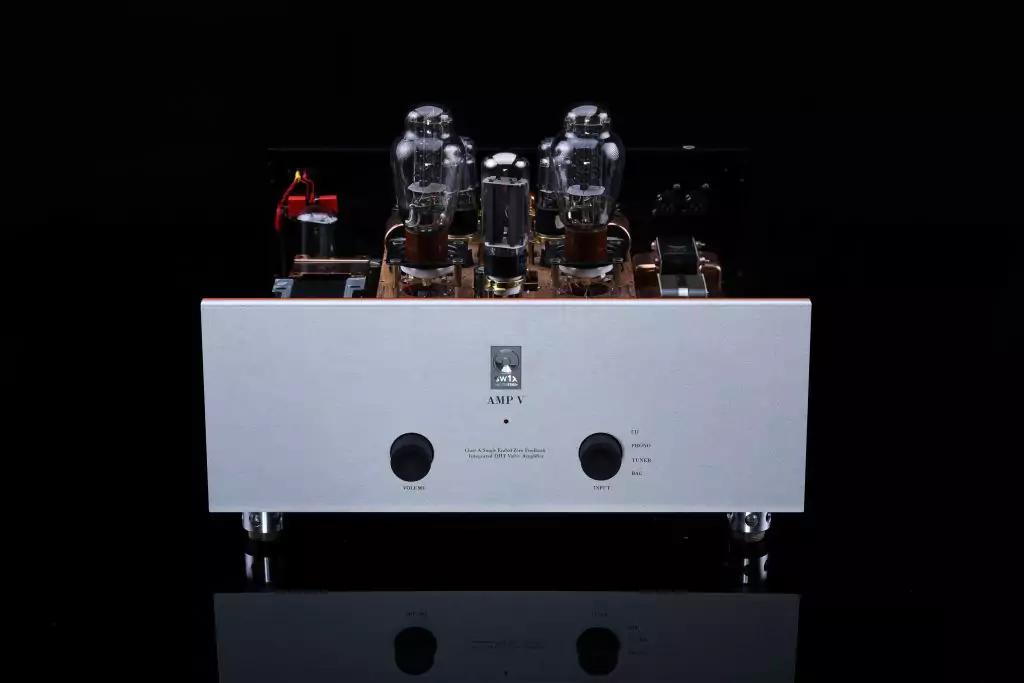

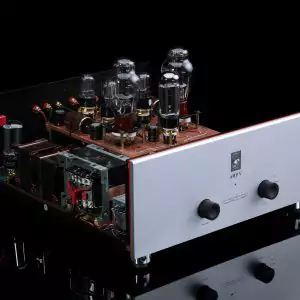

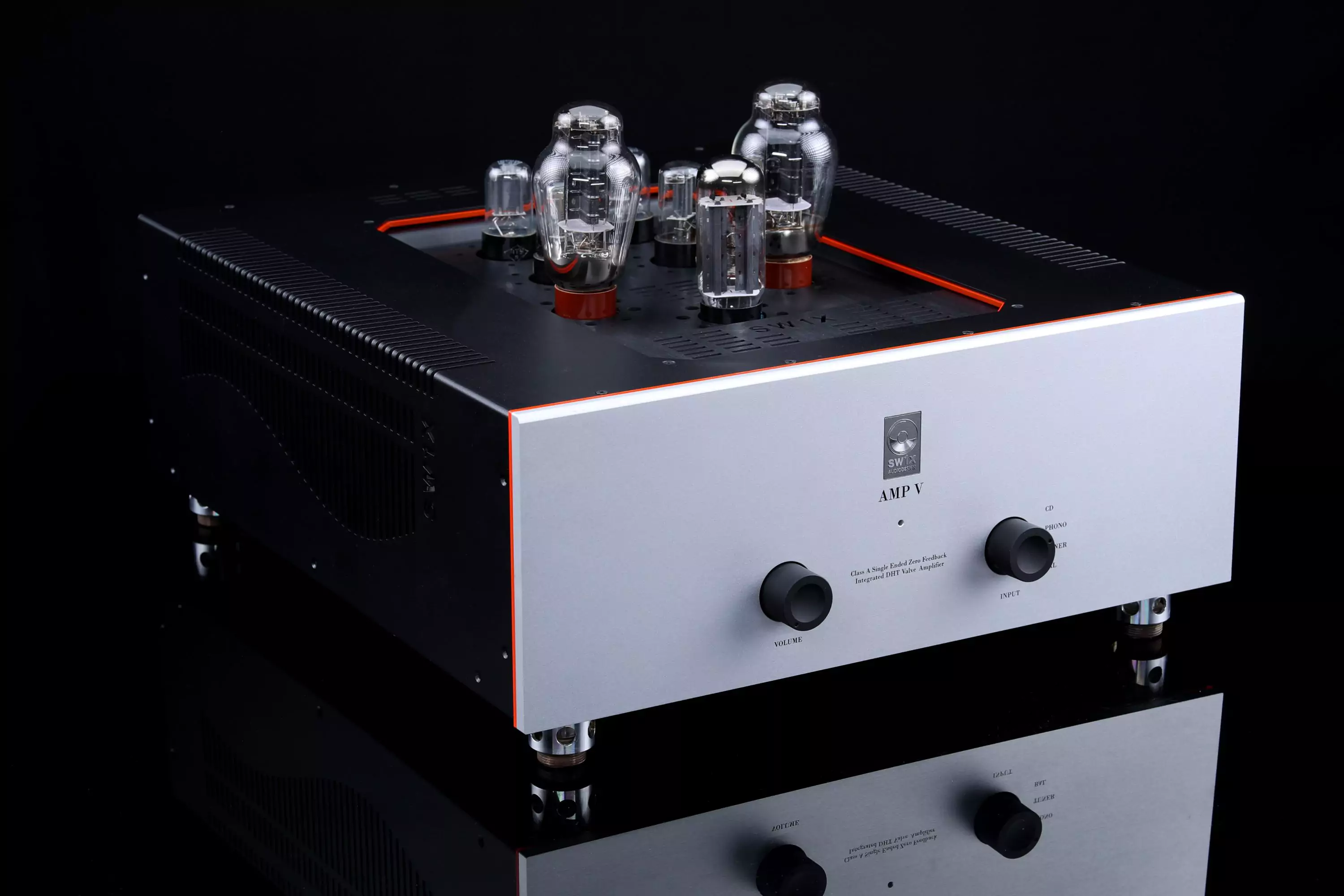

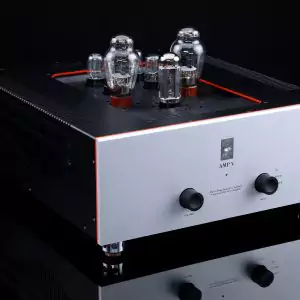

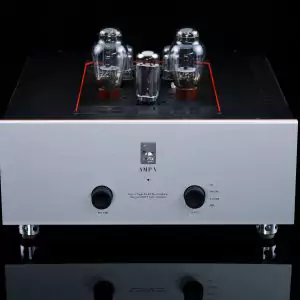

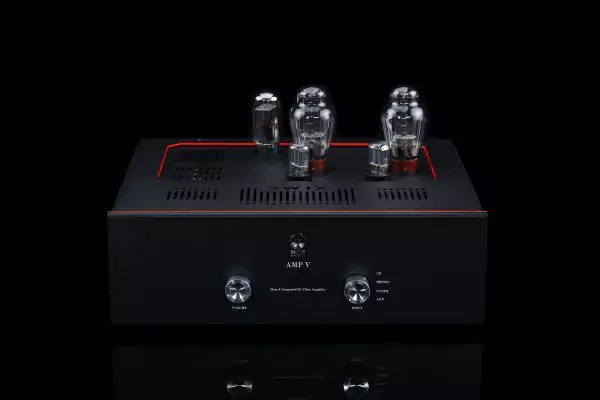

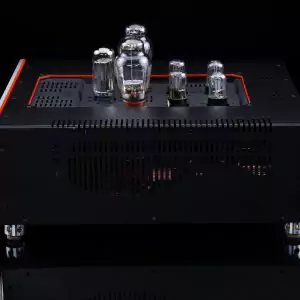

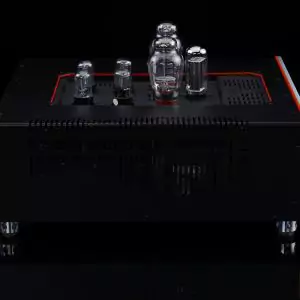

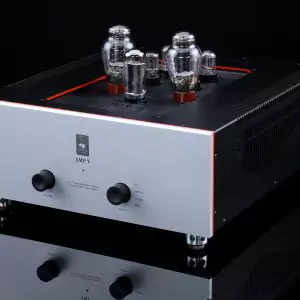

SW1X Audio Design™ AMP V "Jupiter" Phono Integrated Amplifier

SW1X Audio Design™ AMP V “Jupiter”

Performance Level 3/4/5
300B DHT Integrated Amplifier



AMP V is a 3 gain stage Power Amplifier coupled with a High Quality Pre-amplifier using our in house designed and in house made stepped attenuator volume control.

Just like the AMP V Titan it is extremely musical and powerful sounding Integrated Amplifier. Larger chassis makes it possible to integrate our famous LPU I Phono stage or the DAC I in one chassis.

The Directly Heated 300B Triodes at the output stage are driven by the popular 6J5 & 6SN7 driver tubes to produce musical and balanced sound.

Available in different versions: Special and the limited Signature version with different power output transformer options (Permalloy or SHiB and UHiB) and all Copper or Copper/Silver  windings

SW1X Audio Design™ AMP V Jupiter Integrated Amplifier Features:

  • Specially Selected and Harmonically Matched Component & Material Quality
  • Single Ended, absolutely Zero NFB, Class A, Directly Heated Triode Valve Power Amplifier
  • 2 x 6J5 & 6SN7 Triode driver/input Stage Valves driving the 2 x 300B DHT Valves
  • 3 Amplification Gain Stage Design

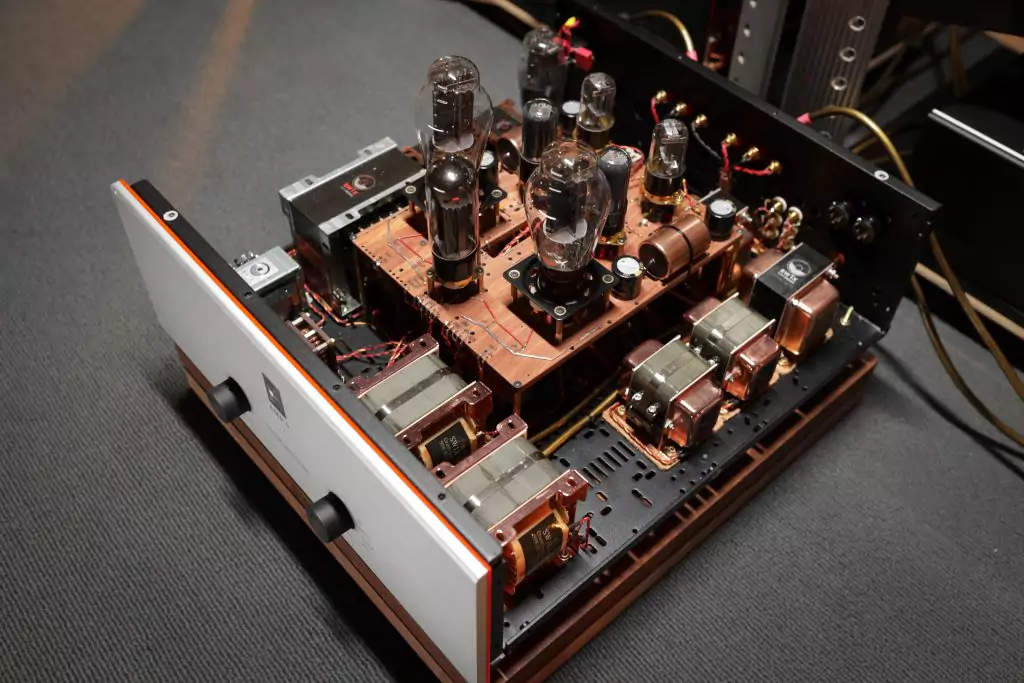

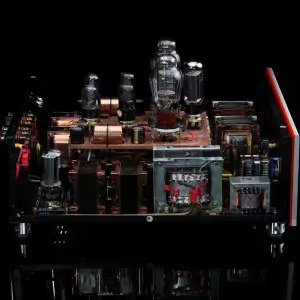

  • Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
  • Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors
  • SW1X Audio DesignCustom Designed Copper wound Super HiB DC Core (50 Watt) Signal Output Transformers
  • Quasi Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
  • SW1X Custom Design 24 Step Discrete Attentuator Volume Control
  • Orient grain M6 EI core mains Transformers & Chokes
  • Valve rectified Fixed Bias Power Supply



Tube Compliment:  2 x 6J5, 2 x 6SN7, 2 x 300B, 1 x 5U4GB, 1 x 5Y3

Reviews

AMP V Jupiter is avaiable in 4 Versions with either Satin Silver or Matte Black front Panels

with a following output transformer (OPTs) specifications:

Standard : SW1X Audio Design all Copper wound, orient grain M6 EI Core OPTs

Special :  SW1X Audio Designall Copper wound Super HiB DC Core OPTs

Classic : SW1X Audio DesignCopper/Silver Windings, Super HiB DC Core OPTs

Signature : SW1X Audio Design™ Silver/Silver Windings, Super HiB DC Core OPTs





Optional Extras

  • Silver wound SW1X Audio DesignCustom Designed Super HiB or Ultra HiB DC core Signal Output Transformers

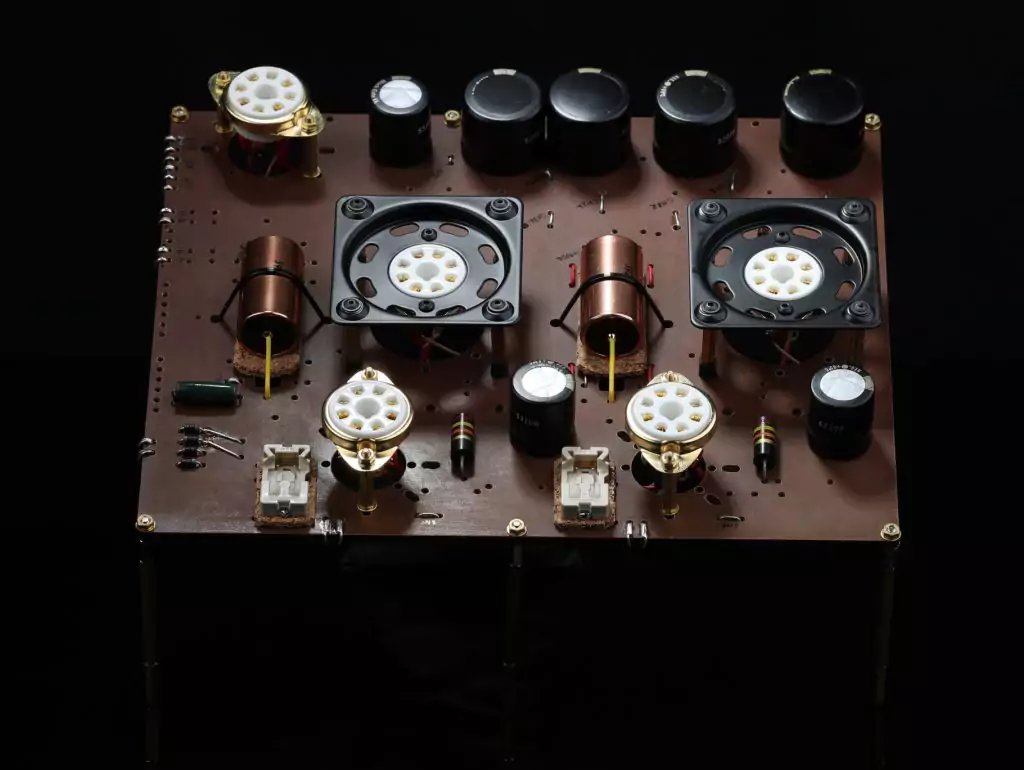

  • Fully Hardwired Tube Output Stage on the Bakelite Board
  • Fine Silver wiring on the Input, Bakelite Board and Output
  • Black Gate VK capacitors in the B+ power supply
  • AN 2W non-magnetic Niobium resistors on a Hardwired Bakelite Board
  • Super HiB double C-Core mains transformers
  • Inter-stage signal decoupling capacitors: 1. Copper Foil in Oil or 2. Silver Foil capacitors
  • AN 2W silver, non-magnetic, Tantalum resistors
