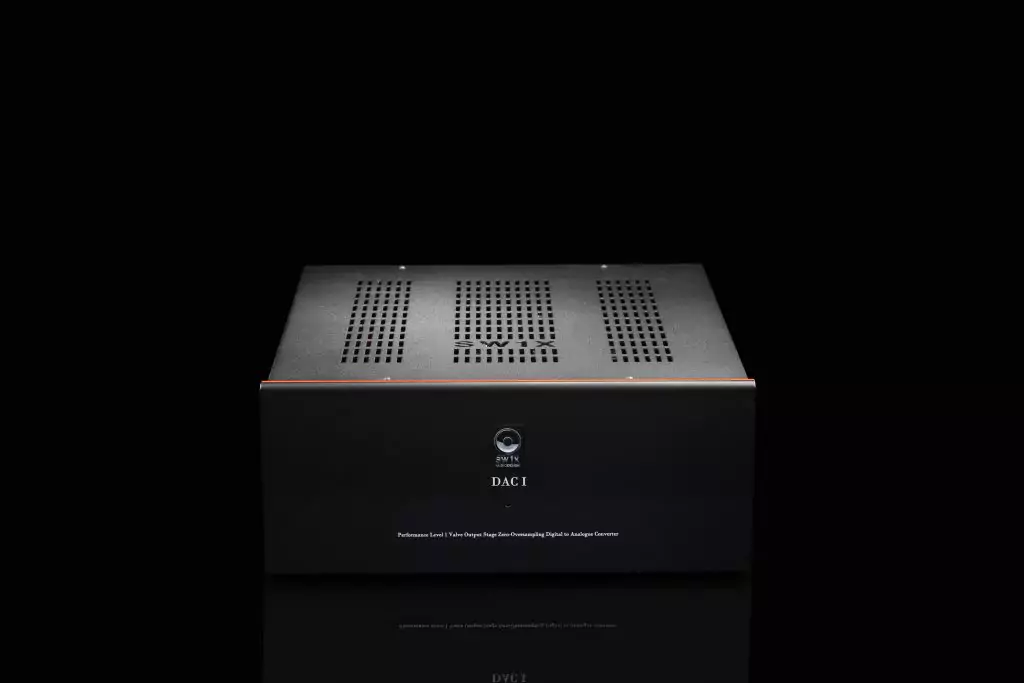

SW1X Audio Design™ DAC I Performance Level 1

D to A Converter



This DAC is considered to be one of the most musical and purist NOS R2R DAC ever made. We are proud to offer the DAC I at its full glory with choke filtered and valve rectified power supply. This is a high performance entry level solution to a musical, organic & analogue sounding digital setup- just add an analogue sounding digital transport and re-experience your collection of music.

SW1X Audio Design™ DAC I Features:

  • Pure NOS (Non oversampling – zero digital domain filtering) R2R design
  • Selected and Harmonically matched Component & Material Quality
  • Pure Class A, Single Ended, Anode Follower, Zero Negative Feedback, RC (resistive loaded, capacitive de-coupled) Valve Amplification Topology
  • 6N6P Double Triode Driver Valve Output Stage
  • Valve rectified CLC (choke filtered) HV power supply
  • Discrete Transistor, Shunt Voltage Regulated Low Voltage Power Supplies
  • Supports up to 24Bit/96kHz digital coaxial S/PDIF signal input



Specially Selected and Harmonically Matched Component & Material Quality

  • M6 grain orient EI core Mains Transformer & Choke (SPX version)
  • Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors of various geometry (single strand or Litz)
  • AN Copper Foil in Oil signal de-coupling Capacitors (SPX version)
  • AB 1W non-magnetic Carbon film Resistors in selected places

Tube Compliment:  1 x 6N6P, 1 x 6X5GT or 5Y3





Digital to Analogue Converter Products Overview



Note: Due to SW1X Audio Design’s ongoing research and development process, specifications are subject to change without notice.

Specifications

Dimensions: Height (mm) 130 x Width (mm) 335 x Depth (mm) 400

Weight (kg): 10.3

Max Power Consumption (W): 15

Output Noise, Unweighted (mVrms): < 0.5

Output Impedance (k Ohms): <1



Ordering

We do not recommend purchasing a key system component without first auditioning it carefully, which is why we have demonstration rooms and a 14 day trial period policy.
However in certain situations it can be difficult for people to get to our showroom and for those instances we can offer our mail order service.
